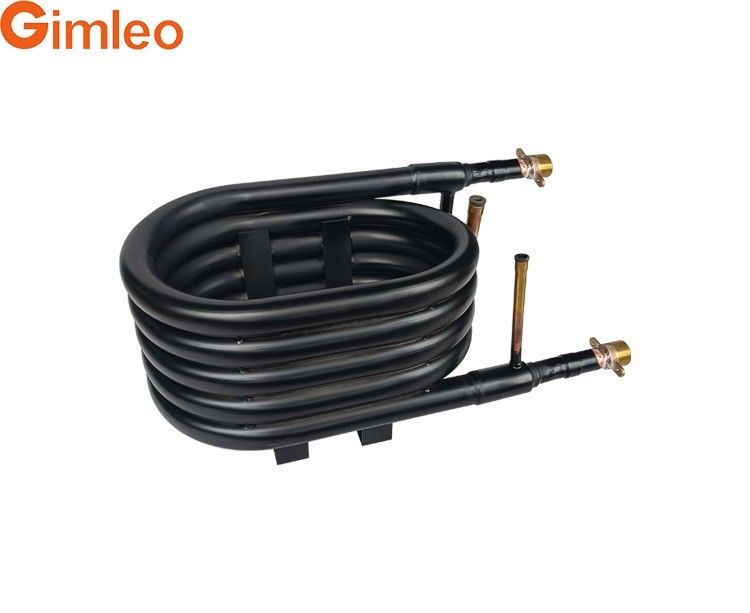

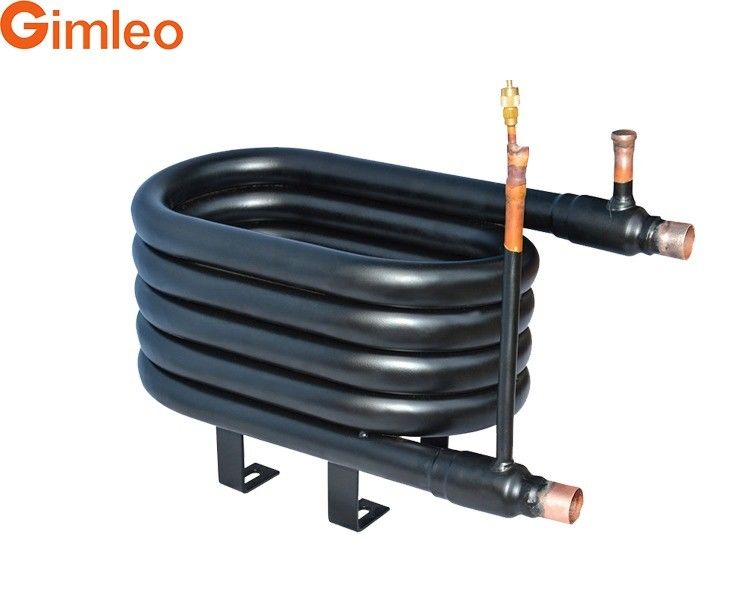

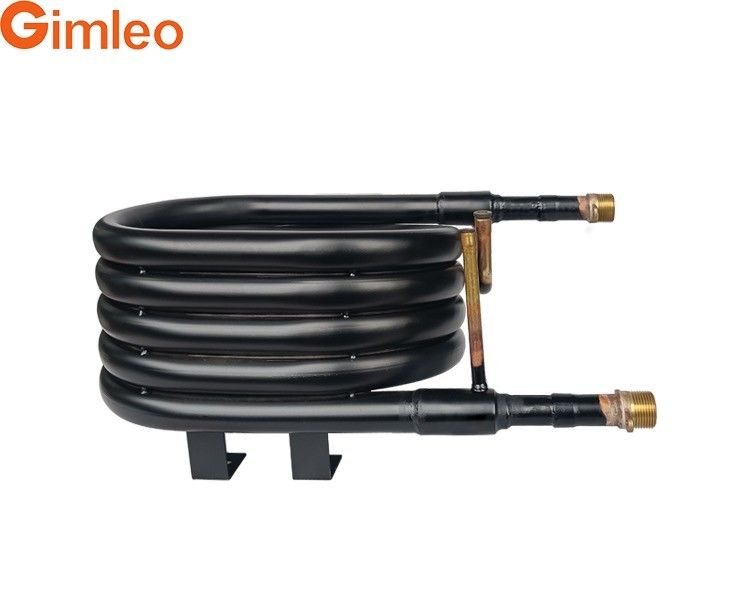

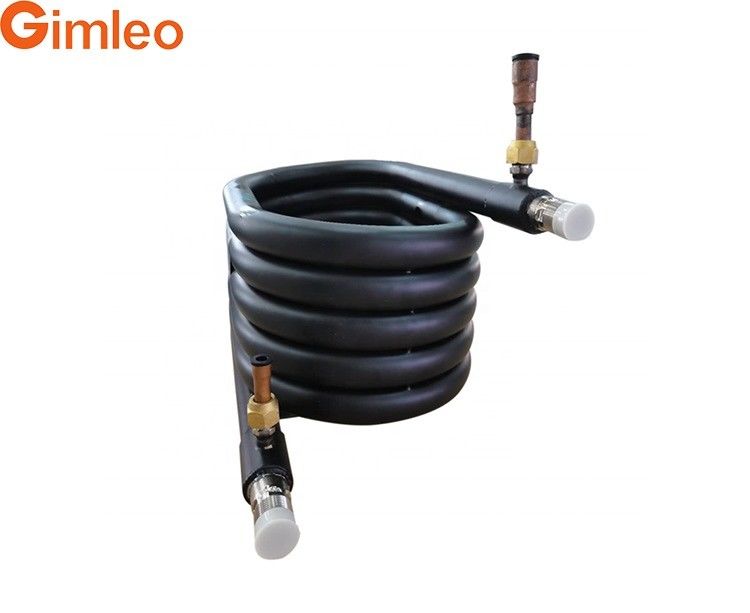

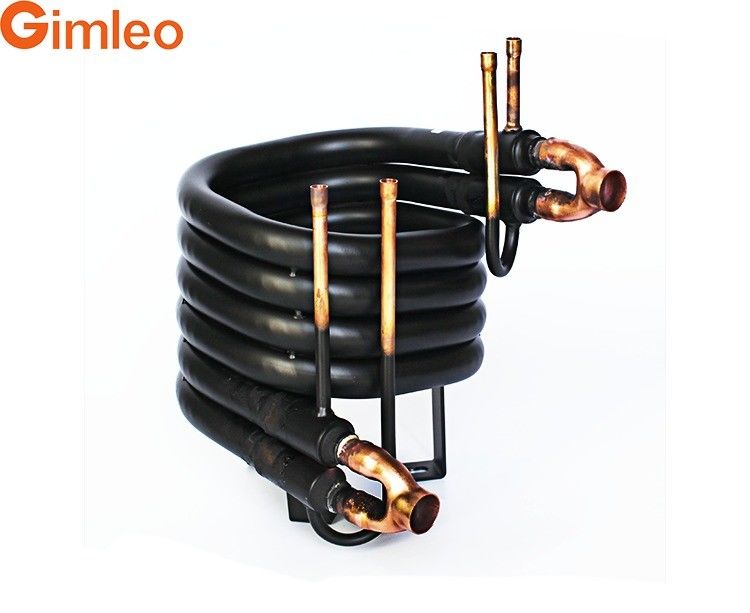

Gimleo Air Source Heat Pump Heat Exchanger , Water Heater Exchanger GY-0154C 15KG

Gimleo Air Source Heat Pump Heat Exchanger

Water Heater Exchanger 15KG

Water Heater Exchanger GY-0154C

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Request A Quote

Gimleo Air Source Heat Pump Heat Exchanger , Water Heater Exchanger GY-0154C 15KG

Product Details

Applicable Industries:

Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining

Video Outgoing-inspection:

Not Available

Machinery Test Report:

Not Available

Warranty Of Core Components:

1 Year

Condition:

New

Maximum Working Pressure:

5.0MPa

Weight:

15KG

Dimension(L*W*H):

Multiple Choice

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Key Selling Points:

High Safety Level

Product Name:

Coaxial Heat Exchanger

Heat Capacity:

15.4 Kw

Water Flow:

2.6 M³/h

Structure:

Trombone Coaxial, Tube Heat Exchanger

Tube Material:

Copper Tube

Shell Material:

Stainless Steel Copper Tube

Used As:

Condenser,Evaporator

Water Connection:

1 Inch

Showroom Location:

None

Core Components:

Liquid Flow Rate:

2.6 M³/h

Port:

Rongqi,Shunde,LELIU Etc

Highlight:

Gimleo Air Source Heat Pump Heat Exchanger

Water Heater Exchanger 15KG

Water Heater Exchanger GY-0154C

Payment & Shipping Terms

Price

$240.00/sets 1-49 sets

Packaging Details

plywood case and carton

Supply Ability

1500 Set/Sets per Week

Gimleo Air Source Heat Exchanger For Water Heater With 1 Inch Water Connection And GY-0154C 15 KG

Get Best Price

Best 7kw Water Air Heat Exchanger RAH03-CMF for Liquid Flow Rate 1.2M 3/h

Get Best Price

25.4mm double tubes small volume efficient tank safety heat exchanger for water-source air conditioner, industry chiller

Get Best Price

Customizable Air Source Heat Exchanger For Industrial And Commercial Applications

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

Gimleo Air Source Heat Pump Water Heater Exchanger GY-0154C 15 KG 1 Inch Water Connection

Products Description

Product name	Coaxial Heat Exchanger
Type	copper tube in steel tube
Model number	GY-0154C
Heating capacity	15.4kw
Water flow	2.6m³/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Coaxial heat exchanger is a recuperative heat exchanger. It consists of one inner twisted tube and one outer tube.Inner tube is separated the two media. Enable to heat exchange by using the common wall surface. Generally, the shell pass is for water, and the tube pass is for the air. It used a manner of countercurrent, which can be improved the effect of the heat transfer.

Its advantages: pressure proof, quake proof, Deformation proof, dirty proof,oil returning smoothly, safe and high-quality,leak proof, convenient,reasonable price,well applied into heat pump system.

Product Features :

• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.

• According to different application scenarios,different heat exchange tubes can be selected.

Product material and structure :

Tube material and structure can be customizable.

Optional tube material	pure copper tube	stainless steel tube	titanium tube	nickel-copper tube
Optional tube structure	Round coaxial	Trombone coaxial	Rectangle coaxial
