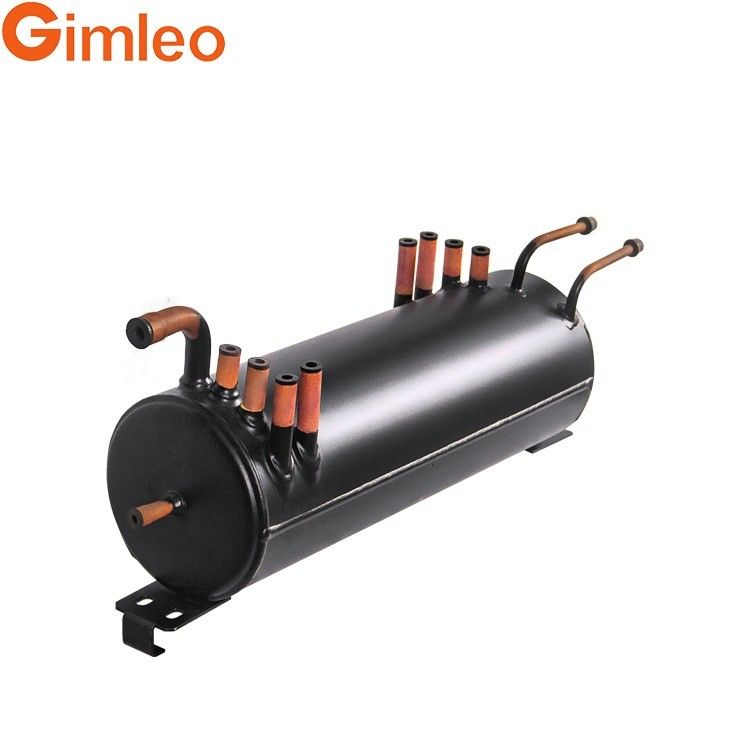

25KW Enthalpy-Adding Heat Exchanger 10KG for Building Material Shops

25KW Enthalpy-Adding Heat Exchanger

Enthalpy-Adding Heat Exchanger 10KG

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Request A Quote

25KW Enthalpy-Adding Heat Exchanger 10KG for Building Material Shops

Product Details

Product Name:

Enthalpy-Adding Heat Exchanger

Warranty Of Core Components:

1 Year

Liquid Flow Rate:

3.45m³/h

Maximum Working Pressure:

5.2Mpa

Weight:

10KG

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Heating Capacity:

25kw

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Cooling Capacity:

16.5kw

Tube Material:

15.88mm Copper Tube

Refrigerant Outlet:

9.52mm

Highlight:

25KW Enthalpy-Adding Heat Exchanger

Enthalpy-Adding Heat Exchanger 10KG

Payment & Shipping Terms

Price

$209.00/sets 1-49 sets

Packaging Details

plywood case and carton

Supply Ability

1500 Set/Sets per Week

GAD 7HP 16mm Multi Tubes Thermal Shell Heat Exchanger Superior Heat Transfer Efficiency

Get Best Price

16mm Multi Tubular Customizable Tube in Shell Heat Exchanger for Various Industrial Applications

Get Best Price

16mm Multi Tubular Customizable Tube In Shell Heat Exchanger For Industrial

Get Best Price

Multi Tubular Heat Exchanger Customizable For Optimal Heat Transfer Performance

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

OME Voltage Condenser Essential Component For EVI Heat Pump Heat Exchanger GAD07-CME-Z

Products Description

Product name	Enthalpy-adding Heat Exchanger
Type	GAD series enthalpy-adding
Model number	GAD07-CME-Z
Heating capacity	25kw
Cooling capacity	16.5kw
Water flow	3.45m³/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Enthalpy-adding is Optional additional structure in tube-in-shell heat exchanger. All of our tube-in-shell heat exchanger products can be added this structure.

Enthalpy-adding Heat Exchanger integrates the economizer into the heat exchanger, which significantly improves the heat transfer efficiency of the heat exchanger at low temperature(Below-10℃). The integrated design allows customers to reduce the volume of equipment and production costs without additional configuration of the economizer.

Product Features :

• Enthalpy-adding structure can Considerably improve the heating efficiency at low temperature condition.
• Due to the integrated design, heat exchange equipment can be made smaller and cheaper

• It is Optional additional structure of all of our tube in shell heat exchanger products.

Product list :

All of tube-in-shell heat exchanger

product	Common Version Heat Exchanger	R series Heat Exchanger
	Compact Version Heat Exchanger	Double Wall Tube Heat Exchanger
	Multitube Heat Exchanger

Principle of economizer :

High-pressure liquid refrigerant from condenser is divided into two parts. One part of refrigerant absorbs heat through throttling expansion and becomes two-phase (gaseous and liquid) fluid with low temperature and pressure.Two-phase fluid exchanges heat with another part of liquid refrigerant through economizer, so that the other part of refrigerant can get lower temperature. Two-phase fluid becomes gas and enters the compressor to continue cycle. The other part of low temperature liquid directly enters the evaporator for refrigeration .

Principle of enthalpy-adding heat exchanger :

Enthalpy-adding structure is an economizer integrated in the heat exchanger, Enthalpy-adding heat exchanger is usually used as condenser. This structure can significantly improve the heat exchange efficiency at low temperature(Below-10℃).
