Condenser / Evaporator Multi Tubular Heat Exchanger With Economizer

Condenser Multi Tubular Heat Exchanger

Evaporator Multi Tubular Heat Exchanger

Multi Tubular Type Heat Exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Request A Quote

Condenser / Evaporator Multi Tubular Heat Exchanger With Economizer

Product Details

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Showroom Location:

None

Video Outgoing-inspection:

Not Available

Machinery Test Report:

Not Available

Warranty Of Core Components:

1 Year

Core Components:

Condition:

New

Structure:

Tube Heat Exchanger

Liquid Flow Rate:

2.75m^3/h

Maximum Working Pressure:

5.2Mpa

Voltage:

OME

Weight:

9 KG

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Key Selling Points:

Sustainable

Product Name:

Enthalpy-adding Heat Exchanger

Heating Capacity:

18kw

Cooling Capacity:

14kw

Tube Material:

22mm Single Copper Tube

Shell Material:

120mm High Quality Steel

Refrigerant Inlet:

15.88mm

Refrigerant Outlet:

9.52mm

Water Connection:

22mm

Application:

Condenser,Evaporator

Port:

Rongqi,Shunde,LELIU Etc

Highlight:

Condenser Multi Tubular Heat Exchanger

Evaporator Multi Tubular Heat Exchanger

Multi Tubular Type Heat Exchanger

Payment & Shipping Terms

Price

$200.00/sets 1-49 sets

Packaging Details

plywood case and carton

Supply Ability

1500 Set/Sets per Week

GAD 7HP 16mm Multi Tubes Thermal Shell Heat Exchanger Superior Heat Transfer Efficiency

Get Best Price

16mm Multi Tubular Customizable Tube in Shell Heat Exchanger for Various Industrial Applications

Get Best Price

16mm Multi Tubular Customizable Tube In Shell Heat Exchanger For Industrial

Get Best Price

Multi Tubular Heat Exchanger Customizable For Optimal Heat Transfer Performance

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

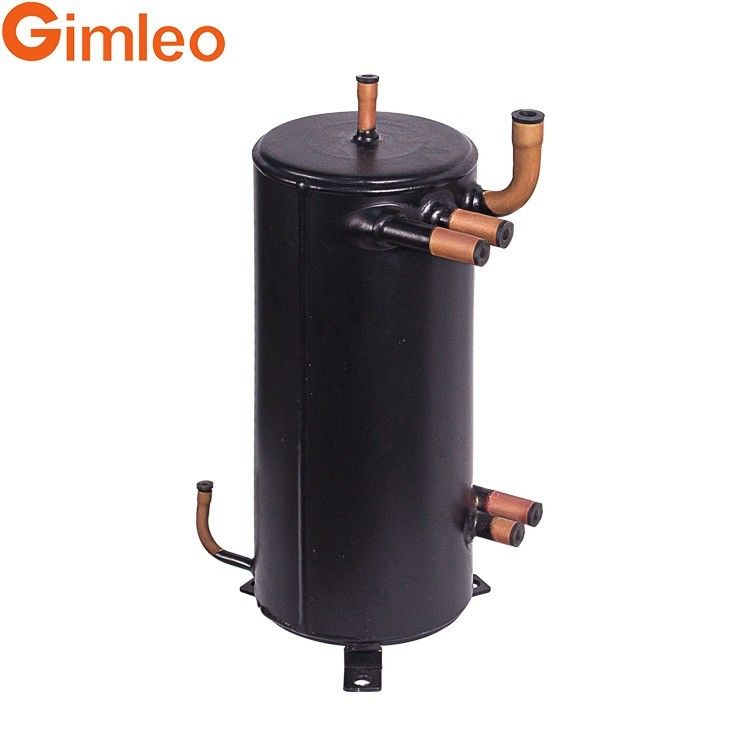

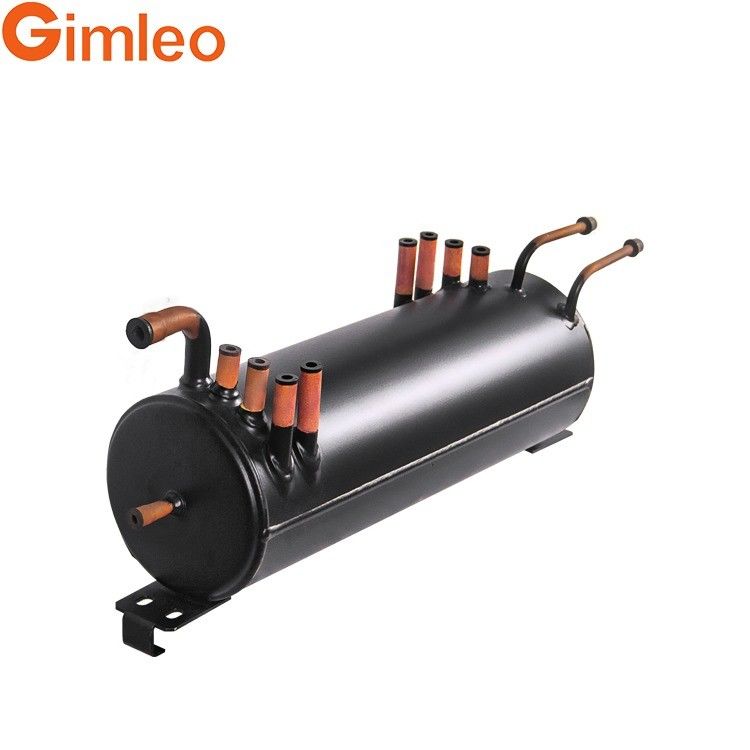

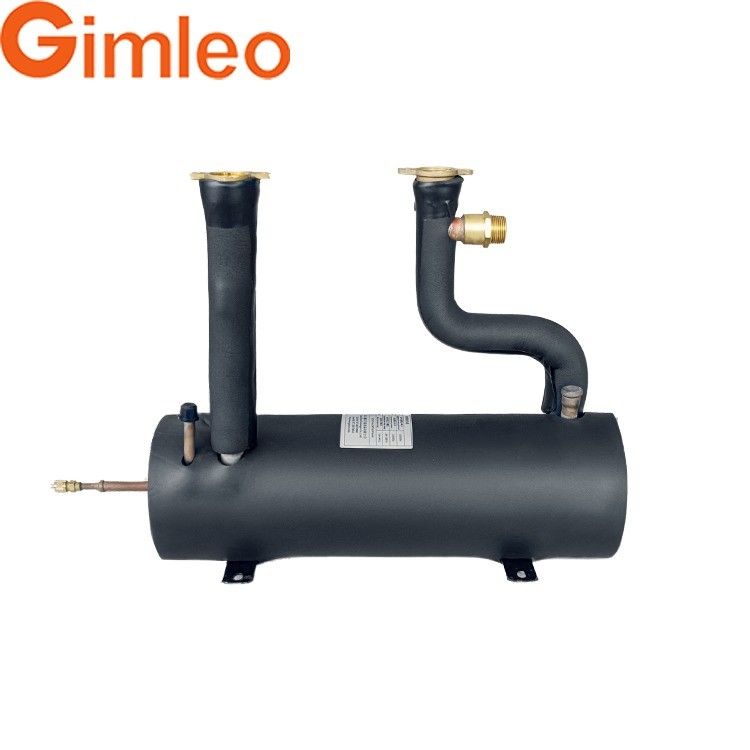

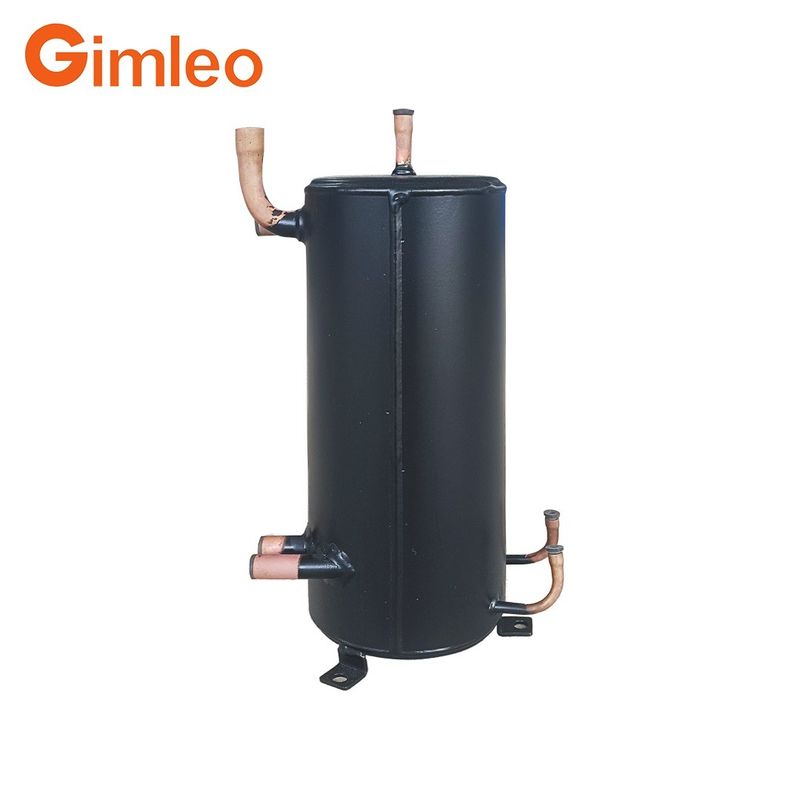

Tube Heat Exchanger With Economizer And 120mm Steel Shell Material GAH06-CMF-Z 6HP

Products Description

Product name	Enthalpy-adding Heat Exchanger
Type	common series enthalpy-adding
Model number	GAH06-CMF-Z
Heating capacity	18kw
Cooling capacity	14kw
Water flow	2.75m^3/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Enthalpy-adding is Optional additional structure in tube-in-shell heat exchanger. All of our tube-in-shell heat exchanger products can be added this structure.

Enthalpy-adding Heat Exchanger integrates the economizer into the heat exchanger, which significantly improves the heat transfer efficiency of the heat exchanger at low temperature(Below-10℃). The integrated design allows customers to reduce the volume of equipment and production costs without additional configuration of the economizer.

Product Features :

• Enthalpy-adding structure can Considerably improve the heating efficiency at low temperature condition.
• Due to the integrated design, heat exchange equipment can be made smaller and cheaper

• It is Optional additional structure of all of our tube in shell heat exchanger products.

Product list :

All of tube-in-shell heat exchanger

product	Common Version Heat Exchanger	R series Heat Exchanger
	Compact Version Heat Exchanger	Double Wall Tube Heat Exchanger
	Multitube Heat Exchanger

Principle of economizer :

High-pressure liquid refrigerant from condenser is divided into two parts. One part of refrigerant absorbs heat through throttling expansion and becomes two-phase (gaseous and liquid) fluid with low temperature and pressure.Two-phase fluid exchanges heat with another part of liquid refrigerant through economizer, so that the other part of refrigerant can get lower temperature. Two-phase fluid becomes gas and enters the compressor to continue cycle. The other part of low temperature liquid directly enters the evaporator for refrigeration .

Principle of enthalpy-adding heat exchanger :

Enthalpy-adding structure is an economizer integrated in the heat exchanger, Enthalpy-adding heat exchanger is usually used as condenser. This structure can significantly improve the heat exchange efficiency at low temperature(Below-10℃).

Details Images

Product Application

Product Categories

Company Profile

Company Introduction

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
