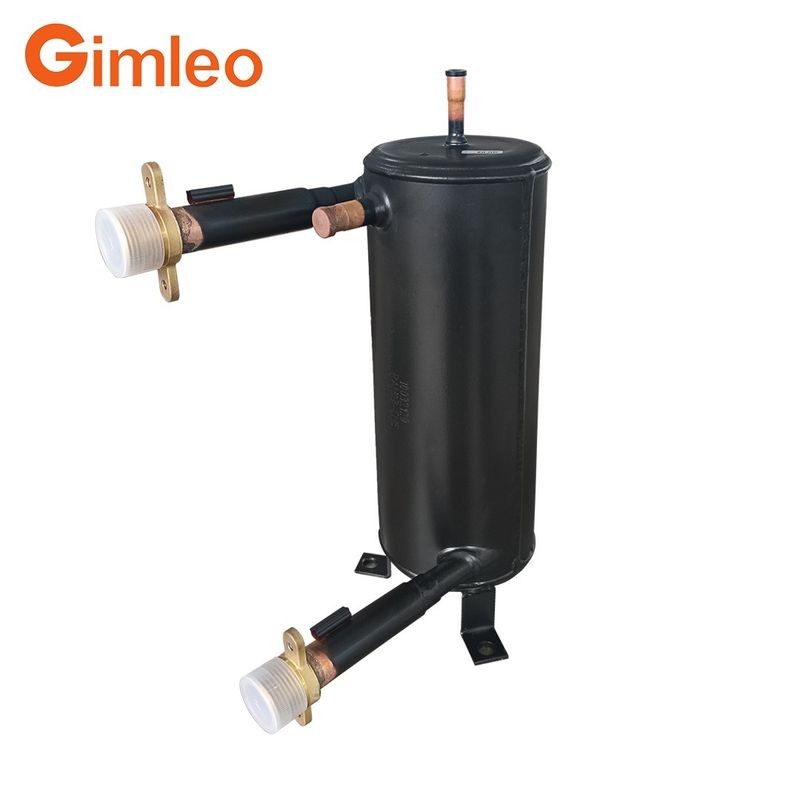

High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF

High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF

High Efficiency Tube In Shell Heat Exchanger

Tube In Shell Heat Exchanger 7KW

High Efficiency Heat Exchanger 7KW

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Model Number:

RAH03-CME

Contact Us
Request A Quote
High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF
Product Details
Warranty Of Core Components:
1 Year
Liquid Flow Rate:
1.2M3/h
Maximum Working Pressure:
5.2Mpa
Weight:
12 KG
Warranty:
1 Year
Working Temperature Range:
-50~150℃
Heating Capacity:
7KW
Cooling Capacity:
5
Tube Material:
19.05 Mm Copper Tube
Highlight:

High Efficiency Tube In Shell Heat Exchanger

,

Tube In Shell Heat Exchanger 7KW

,

High Efficiency Heat Exchanger 7KW

Payment & Shipping Terms
Minimum Order Quantity
10units
Price
$103.00/units 10-49 units
Packaging Details
Plywood Packing Crates and Boxes
Delivery Time
15days
Payment Terms
T/T
Supply Ability
1500 Piece/Pieces per Month
RELATED PRODUCTS
Good price Gimleo GAD06-CMF 17kW Spiral Copper Tube Heat Exchanger For Easy Installation And Maintenance And Durable Performance online Video

Gimleo GAD06-CMF 17kW Spiral Copper Tube Heat Exchanger For Easy Installation And Maintenance And Durable Performance

Get Best Price
Good price Tube In Shell Heat Exchanger For High Pressure High Temperature RAK06-CMF online Video

Tube In Shell Heat Exchanger For High Pressure High Temperature RAK06-CMF

Get Best Price
Good price Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application online

Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application

Get Best Price
Good price Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures online

Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures

Get Best Price
Contact Us
+8618929900710
sales06@gimleo.com
86-757-2837-8561
Contact Now
Product Description
High Efficiency Tube In Shell Heat Exchanger Superior And Performance For Heat Transfer Copper Tube RAH03-CME

Description:

Introducing the RAH03-CMF High-Efficiency Tank Heat Exchanger, a pinnacle of advanced thermal management technology.
Featuring 19mm finned copper tubes, this model ensures superior heat transfer efficiency for both heating and cooling applications.
Designed for affordability, the RAH03-CMF combines high performance with a low cost, making it a cost-effective solution for your HVAC needs.

Its compact volume allows for seamless integration into various systems, maximizing space utilization. The innovative flow-around
structure ensures extreme heating efficiency, providing consistent and reliable thermal management. With a heating capacity of 7 kW
and a cooling capacity of 4 kW, it effectively balances both heating and cooling demands.

Built to operate under diverse conditions, the RAH03-CMF guarantees optimal performance even in challenging environments.
Whether for residential or commercial use, this high-efficiency heat exchanger is engineered to deliver unmatched durability and efficiency,
making it the ideal choice for your temperature control requirements.


Quick Detail:



1. 19mm Finned Copper Tubes: These tubes provide excellent heat exchange efficiency, ensuring rapid and even temperature changes for both heating and cooling applications.



2. Low Cost: This heat exchanger combines high performance with affordability, providing a cost-effective solution for your HVAC heat pump.



3. Compact Volume: Its space-saving design allows for seamless integration into various systems, ensuring maximum efficiency without occupying excessive space.



4. Flow-Around Structure: The innovative flow-around structure enhances heating efficiency, ensuring consistent and thorough thermal management throughout the system.



Specification:



 R eriese Heat Exchanger



Model

Heating

capacity1(KW)

Heating

capacity2(KW)

Cooling

capacity(KW)

Water flow(m3/h)

Height(mm)

Spacing of water connection (mm)

Refrigerant inlet(mm)

Refrigerant outlet(mm)

RAH02-CMF/

RBH02-CMF

5

3.5

3

0.86

221

186

12.7

9.52

RAH03-CMF/

RBH03-CMF

7

5

4

1.2

261

180

12.7

9.52

RAH04-CMF/

RBH04-CMF

10

7.5

6.5

1.72

331

250

15.88

9.52

RAH05-CMF/

RBH05-CMF

13

9.5

8.5

2.24

308

220

15.88

9.52

RAH06-CMF/

RBH06-CMF

16

12

11

2.75

353

265

15.88

9.52

RAH07-CMF/

RBH07-CMF

19

14

13

3.27

396

308

19.05

12.7

RAH08-CMF/

RBH08-CMF

22

16

14

3.78

440

352

19.05

12.7

RAK05-CMF/

RBK05-CMF

13

9.5

8.5

2.24

415

380

19.05

12.7

RAK06-CMF/

RBK06-CMF

16

12

10

2.75

463

382

19.05

12.7



Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃



Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.

Products Detail:

High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF 0
High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF 1
High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF 2



Product Application
High Efficiency Tube In Shell Heat Exchanger 7KW For Heat Transfer Copper Tube RAH03-CMF 3
