16mm Single Copper Tube Heat Exchanger R290 Heat Pump Enthalpy Heat Exchanger GAD10-CMF-4-Z

16mm Single Copper Tube Heat Exchanger

Enthalpy Heat Exchanger GAD10-CMF-4-Z

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Request A Quote

16mm Single Copper Tube Heat Exchanger R290 Heat Pump Enthalpy Heat Exchanger GAD10-CMF-4-Z

Product Details

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Video Outgoing-inspection:

Not Available

Machinery Test Report:

Not Available

Warranty Of Core Components:

1 Year

Condition:

New

Maximum Working Pressure:

5.2Mpa

Voltage:

OME

Weight:

15 KG

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Key Selling Points:

Sustainable

Product Name:

Enthalpy-adding Heat Exchanger

Heating Capacity:

30kw

Cooling Capacity:

24kw

Tube Material:

16mm Single Copper Tube

Shell Material:

160mm High Quality Steel

Refrigerant Inlet:

15.88mm

Refrigerant Outlet:

9.52mm

Water Connection:

16mm

Application:

Condenser,Evaporator

Showroom Location:

None

Structure:

Tube Heat Exchanger

Core Components:

Liquid Flow Rate:

5.15m^3/h

Port:

Rongqi,Shunde,LELIU Etc

Highlight:

16mm Single Copper Tube Heat Exchanger

Enthalpy Heat Exchanger GAD10-CMF-4-Z

Payment & Shipping Terms

Price

$325.00/sets 1-49 sets

Packaging Details

plywood case and carton

Supply Ability

1500 Set/Sets per Week

GAD 7HP 16mm Multi Tubes Thermal Shell Heat Exchanger Superior Heat Transfer Efficiency

Get Best Price

16mm Multi Tubular Customizable Tube in Shell Heat Exchanger for Various Industrial Applications

Get Best Price

16mm Multi Tubular Customizable Tube In Shell Heat Exchanger For Industrial

Get Best Price

Multi Tubular Heat Exchanger Customizable For Optimal Heat Transfer Performance

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

16mm Single Copper Tube R290 Heat Pump Enthalpy-Adding Heat Exchanger GAD10-CMF-4-Z

Products Description

Product name	Enthalpy-adding Heat Exchanger
Type	multi-tube enthalpy-adding
Model number	GAD10-CMF-4-Z
Heating capacity	30kw
Cooling capacity	24kw
Water flow	5.15m^3/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Enthalpy-adding is Optional additional structure in tube-in-shell heat exchanger. All of our tube-in-shell heat exchanger products can be added this structure.

Enthalpy-adding Heat Exchanger integrates the economizer into the heat exchanger, which significantly improves the heat transfer efficiency of the heat exchanger at low temperature(Below-10℃). The integrated design allows customers to reduce the volume of equipment and production costs without additional configuration of the economizer.

Product Features :

• Enthalpy-adding structure can Considerably improve the heating efficiency at low temperature condition.
• Due to the integrated design, heat exchange equipment can be made smaller and cheaper

• It is Optional additional structure of all of our tube in shell heat exchanger products.

Product list :

All of tube-in-shell heat exchanger

product	Common Version Heat Exchanger	R series Heat Exchanger
	Compact Version Heat Exchanger	Double Wall Tube Heat Exchanger
	Multi-tube Heat Exchanger

Principle of economizer :

High-pressure liquid refrigerant from condenser is divided into two parts. One part of refrigerant absorbs heat through throttling expansion and becomes two-phase (gaseous and liquid) fluid with low temperature and pressure.Two-phase fluid exchanges heat with another part of liquid refrigerant through economizer, so that the other part of refrigerant can get lower temperature. Two-phase fluid becomes gas and enters the compressor to continue cycle. The other part of low temperature liquid directly enters the evaporator for refrigeration .

Principle of enthalpy-adding heat exchanger :

Enthalpy-adding structure is an economizer integrated in the heat exchanger, Enthalpy-adding heat exchanger is usually used as condenser. This structure can significantly improve the heat exchange efficiency at low temperature(Below-10℃).

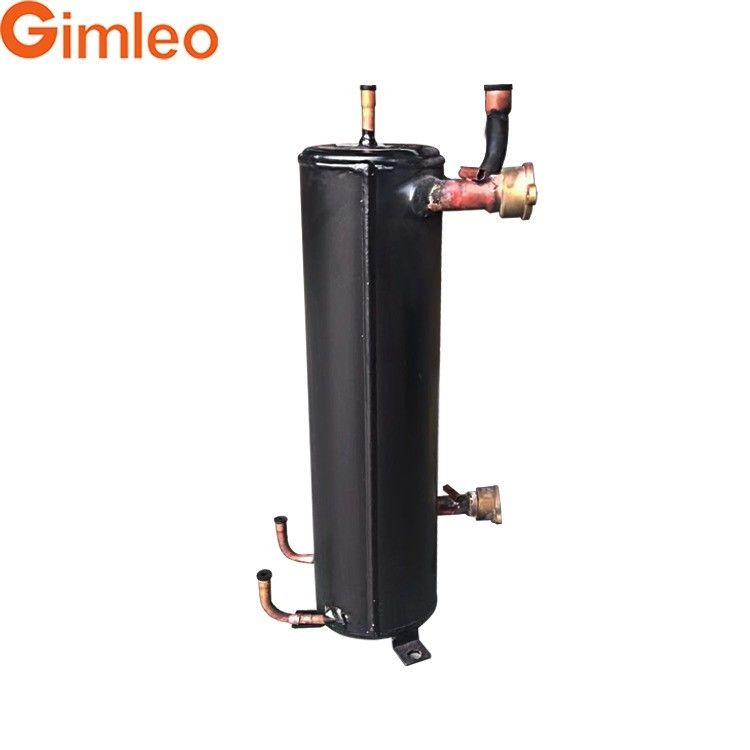

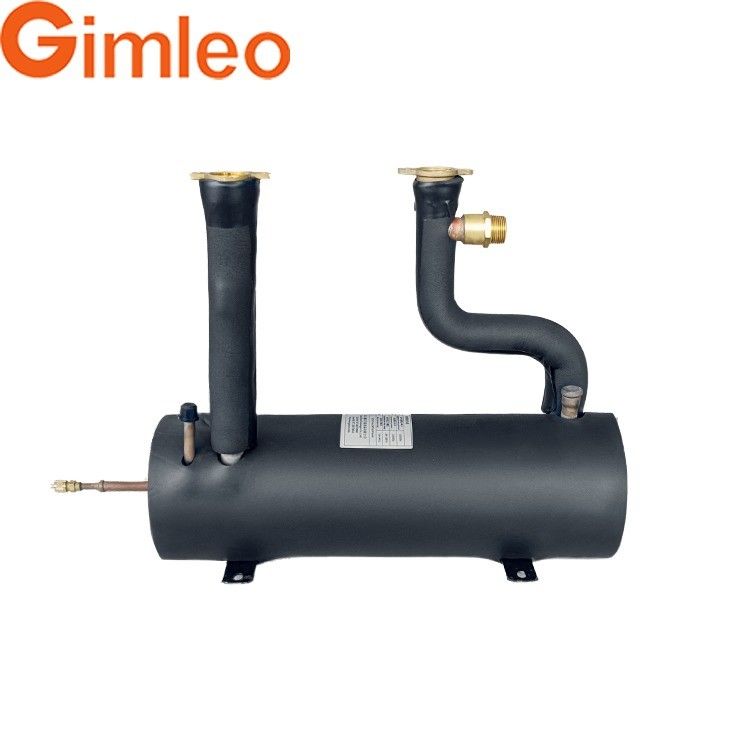

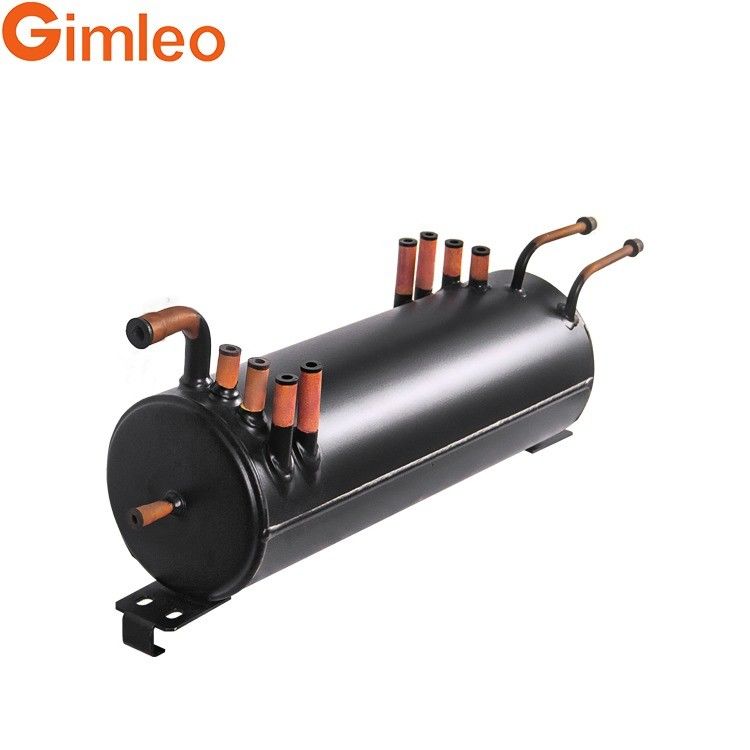

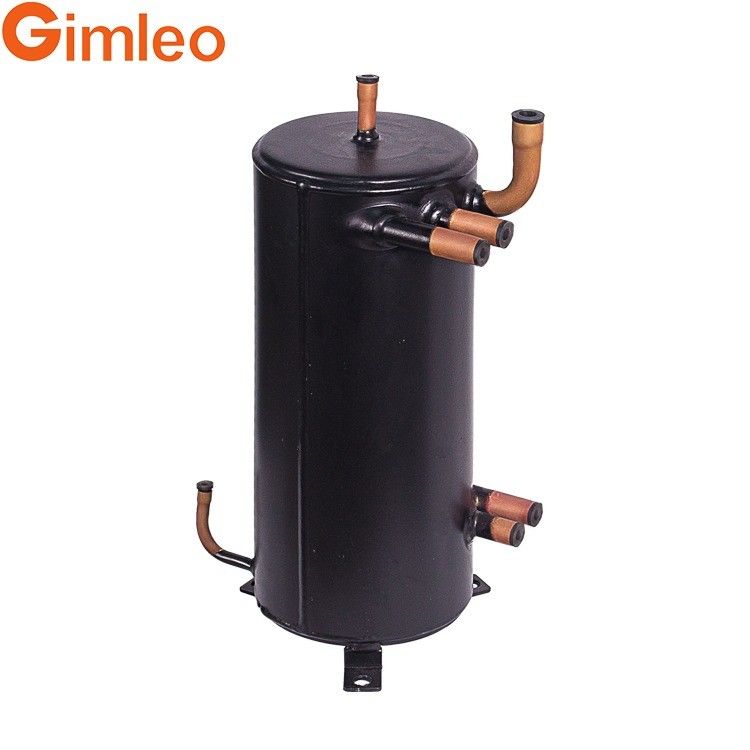

Details Images
