Name: 16KW Tube In Shell Heat Exchanger RAH05-CMF-Z With Enthalpy Adding Function
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: RAH05-CMF-Z
Price: 25.00 USD
Availability: InStock

Home > products > Tube In Shell Heat Exchanger >

16KW Tube In Shell Heat Exchanger RAH05-CMF-Z With Enthalpy Adding Function

16KW Tube In Shell Heat Exchanger

Tube In Shell Heat Exchanger RAH05-CMF-Z

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Model Number:

RAH05-CMF-Z

Request A Quote

Product Details

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Warranty Of Core Components:

1 Year

Maximum Working Pressure:

5.2Mpa

Voltage:

OME

Weight:

11 KG

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Product Name:

Enthalpy-adding Heat Exchanger

Heating Capacity:

16kw

Cooling Capacity:

12kw

Tube Material:

22mm Single Copper Tube

Shell Material:

120mm High Quality Steel

Refrigerant Inlet:

15.88mm

Refrigerant Outlet:

9.52mm

Application:

Condenser,Evaporator

Structure:

Tube Heat Exchanger

Liquid Flow Rate:

2.24m^3/h

Port:

Rongqi,Shunde,LELIU Etc

Highlight:

16KW Tube In Shell Heat Exchanger

Tube In Shell Heat Exchanger RAH05-CMF-Z

Payment & Shipping Terms

Minimum Order Quantity

5pcs

Price

$150.00/sets 1-49 sets

Packaging Details

plywood case

Delivery Time

15 days

Payment Terms

T/T, L/C, D/A, D/P, MoneyGram, Western Union

Supply Ability

600 Pieces per day

Gimleo GAD06-CMF 17kW Spiral Copper Tube Heat Exchanger For Easy Installation And Maintenance And Durable Performance

Get Best Price

Video

Tube In Shell Heat Exchanger For High Pressure High Temperature RAK06-CMF

Get Best Price

Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application

Get Best Price

Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

15.88mm Refrigerant Inlet Heat Exchanger RAH05-CMF-Z With Enthalpy-Adding Function

Products Description

Product name	Enthalpy-adding Heat Exchanger
Type	R series enthalpy-adding
Model number	RAH05-CMF-Z
Heating capacity	16kw
Cooling capacity	12kw
Water flow	2.24m^3/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Enthalpy-adding is Optional additional structure in tube-in-shell heat exchanger. All of our tube-in-shell heat exchanger products can be added this structure.

Enthalpy-adding Heat Exchanger integrates the economizer into the heat exchanger, which significantly improves the heat transfer efficiency of the heat exchanger at low temperature(Below-10℃). The integrated design allows customers to reduce the volume of equipment and production costs without additional configuration of the economizer.

Product Features :

• Enthalpy-adding structure can Considerably improve the heating efficiency at low temperature condition.
• Due to the integrated design, heat exchange equipment can be made smaller and cheaper

• It is Optional additional structure of all of our tube in shell heat exchanger products.

Product list :

All of tube-in-shell heat exchanger

product	Common Version Heat Exchanger	R series Heat Exchanger
	Compact Version Heat Exchanger	Double Wall Tube Heat Exchanger
	Multitube Heat Exchanger

Principle of economizer :

High-pressure liquid refrigerant from condenser is divided into two parts. One part of refrigerant absorbs heat through throttling expansion and becomes two-phase (gaseous and liquid) fluid with low temperature and pressure.Two-phase fluid exchanges heat with another part of liquid refrigerant through economizer, so that the other part of refrigerant can get lower temperature. Two-phase fluid becomes gas and enters the compressor to continue cycle. The other part of low temperature liquid directly enters the evaporator for refrigeration .

Principle of enthalpy-adding heat exchanger :

Enthalpy-adding structure is an economizer integrated in the heat exchanger, Enthalpy-adding heat exchanger is usually used as condenser. This structure can significantly improve the heat exchange efficiency at low temperature(Below-10℃).

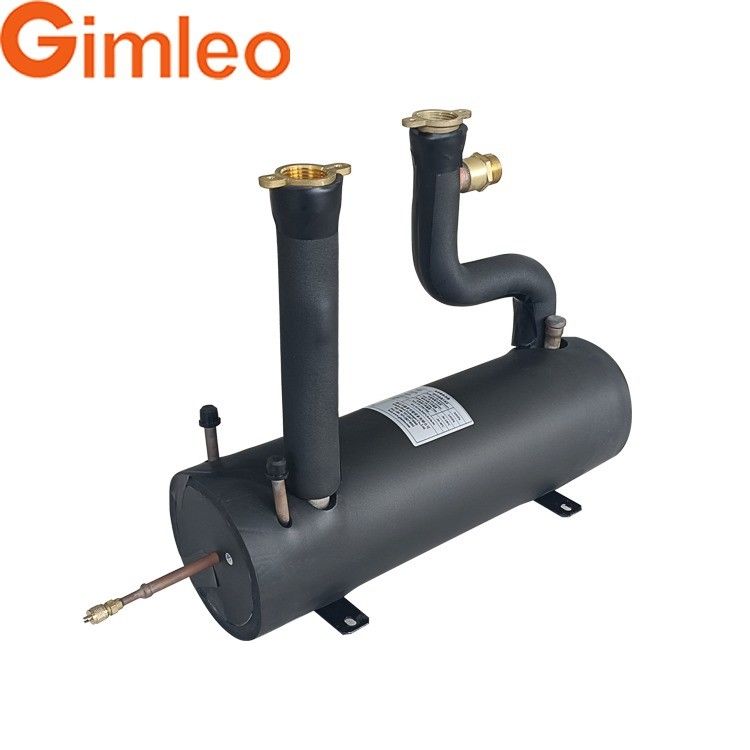

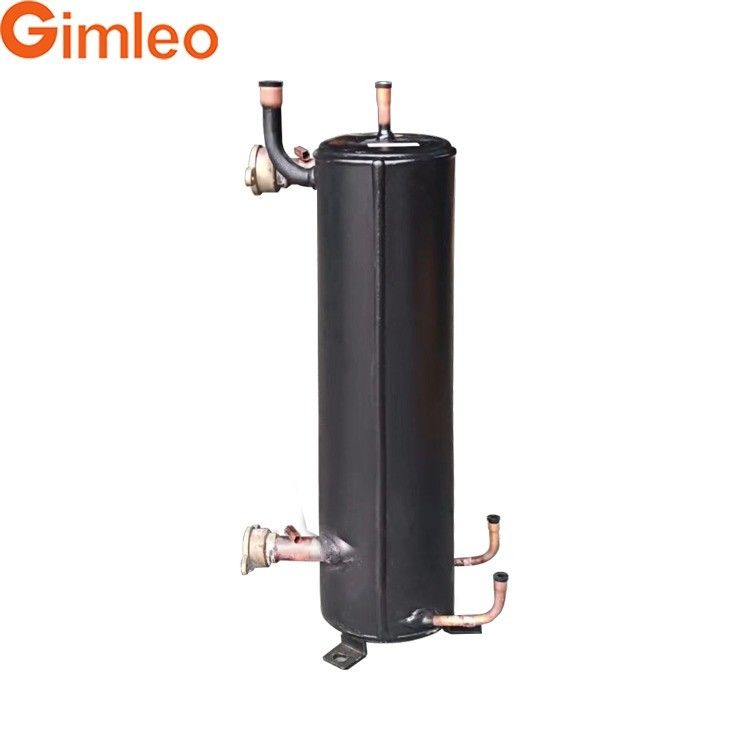

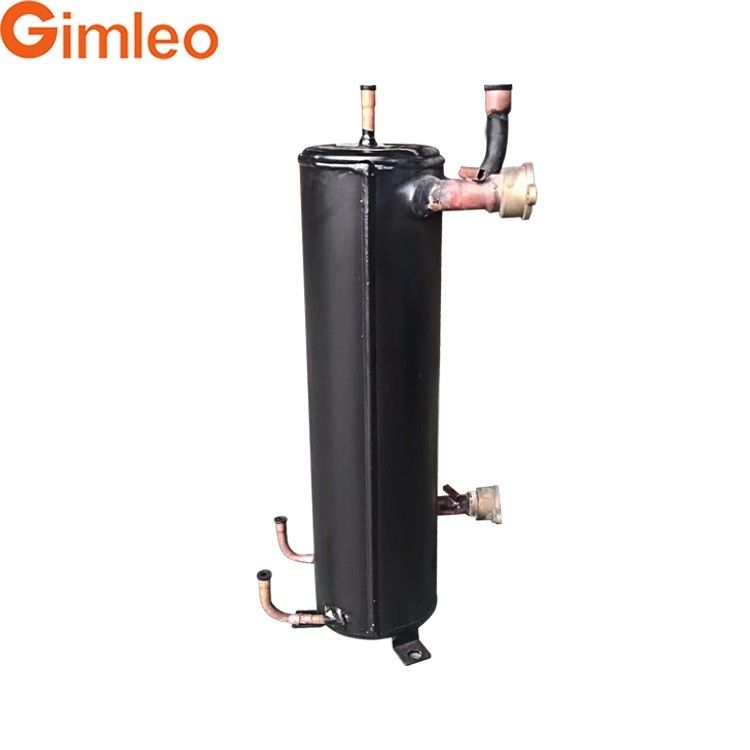

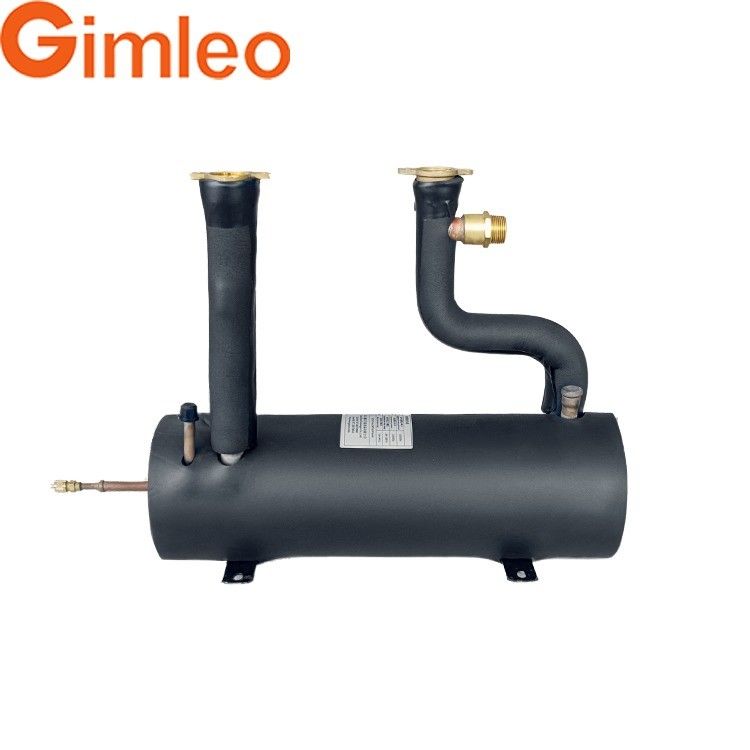

Details Images
