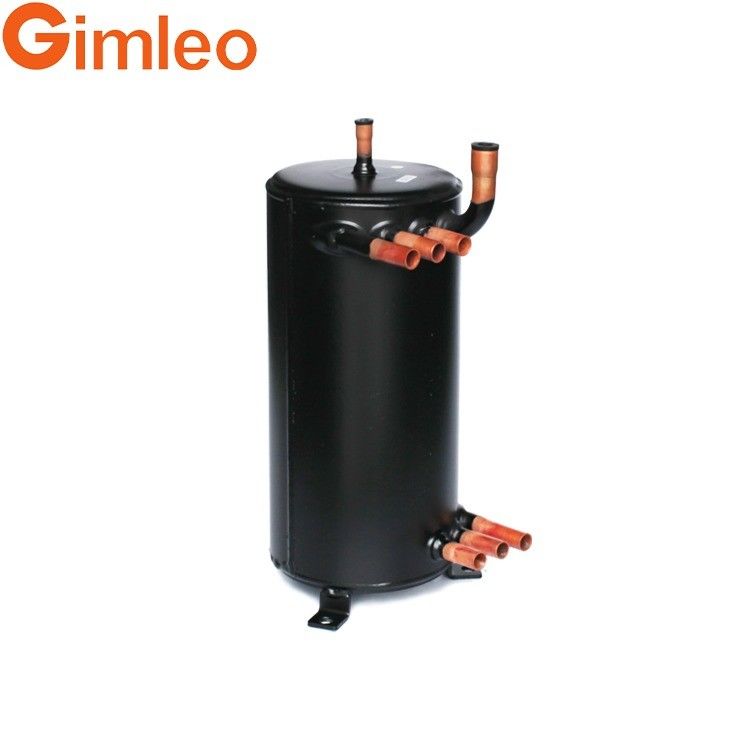

Steel Shell Multi Tubular Heat Exchanger GAD07-CMF-3 ISO9001 Approved

Steel Shell Multi Tubular Heat Exchanger GAD07-CMF-3 ISO9001 Approved

Steel Shell Multi Tubular Heat Exchanger

Multi Tubular Heat Exchanger GAD07-CMF-3

ISO9001 Steel Tube Heat Exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Model Number:

GAD07-CMF-3

Contact Us
Request A Quote
Steel Shell Multi Tubular Heat Exchanger GAD07-CMF-3 ISO9001 Approved
Product Details
Product Name:
Multitube Heat Exchanger
Structure:
Tube Heat Exchanger
Liquid Flow Rate:
3.45 M³/h
Maximum Working Pressure:
5.0MPa
Warranty:
1 Year
Working Temperature Range:
-50~150℃
Heating Capacity:
20kw
Cooling Capacity:
16.5kw
Water Flow Rate:
3.45 M³/h
Applicable Industries:
Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Highlight:

Steel Shell Multi Tubular Heat Exchanger

,

Multi Tubular Heat Exchanger GAD07-CMF-3

,

ISO9001 Steel Tube Heat Exchanger

Payment & Shipping Terms
Minimum Order Quantity
10units
Price
$204.00/units 1-19 units
Packaging Details
plywood cases
Delivery Time
15days
Payment Terms
T/T
Supply Ability
1500 Unit/Units per Month
RELATED PRODUCTS
Good price GAD 7HP 16mm Multi Tubes Thermal Shell Heat Exchanger Superior Heat Transfer Efficiency online

GAD 7HP 16mm Multi Tubes Thermal Shell Heat Exchanger Superior Heat Transfer Efficiency

Get Best Price
Good price 16mm Multi Tubular Customizable Tube in Shell Heat Exchanger for Various Industrial Applications online

16mm Multi Tubular Customizable Tube in Shell Heat Exchanger for Various Industrial Applications

Get Best Price
Good price 16mm Multi Tubular Customizable Tube In Shell Heat Exchanger For Industrial online

16mm Multi Tubular Customizable Tube In Shell Heat Exchanger For Industrial

Get Best Price
Good price Multi Tubular Heat Exchanger Customizable For Optimal Heat Transfer Performance online

Multi Tubular Heat Exchanger Customizable For Optimal Heat Transfer Performance

Get Best Price
Contact Us
+8618929900710
sales06@gimleo.com
86-757-2837-8561
Contact Now
Product Description
Steel Shell Multitube Heat Exchanger GAD07-CMF-3 for -50-150C Working Temperature Range

Description:

Introducing the GAD07-CMF-3, a state-of-the-art multitube heat exchanger from Gimleo, designed to deliver superior performance across a wide temperature range of -50 to 150°C. This advanced heat exchanger is engineered for optimal thermal management, making it an ideal solution for diverse industrial and commercial applications.

The GAD07-CMF-3 features a robust steel shell, ensuring durability and long-term reliability even under extreme temperature conditions. Its multitube design maximizes heat transfer efficiency, providing consistent and reliable operation. Constructed with high-quality materials, this heat exchanger guarantees excellent performance and energy efficiency, reducing operational costs.

Designed for versatility, the GAD07-CMF-3 excels in applications requiring efficient thermal management across a broad temperature range. Experience the cutting-edge technology and superior quality of Gimleo’s multitube heat exchangers with the GAD07-CMF-3, tailored to meet the demands of modern thermal management.


Quick Detail:



1. Steel Shell Construction: Provides exceptional durability and long-term reliability.



2. Multitube Design: Maximizes heat transfer efficiency for consistent and reliable performance.



3. Wide Temperature Range: Operates effectively across -50 to 150°C, suitable for various applications.



4. High-Quality Materials: Built with premium materials for superior performance and energy efficiency.



5. Energy Efficient: Reduces operational costs while maintaining high performance.



Specification:



Multi-tube Heat Exchanger



Model

Heating

capacity1(KW)

Heating

capacity2(KW)

Cooling

capacity(KW)

 Water flow(m3/h) Height(mm) water connection (mm) Refrigerant inlet(mm) Refrigerant outlet(mm)

GAD01-CMF/

GBD01-CMF

 3 2 2 0.52 281 15.88*2 12.7 12.7

GAD1.5-CMF/

GBD1.5-CMF

 4.5 3 3 0.77 311 15.88*2 12.7 12.7

GAD03-CMF/

GBD03-CMF

 9 7.5 7.5 1.55 314 15.88*2 15.88 9.52

GAD04-CMF/

GBD04-CMF

 14 9.5 9.5 2.4 362 15.88*2 15.88 9.52

GAD05-CMF/

GBD05-CMF

 15.5 10.5 10.5 2.67 398 15.88*2 15.88 9.52

GAD06-CMF/

GBD06-CMF

 17 14 14.5 2.75 348 15.88*3 19.05 12.7

GAD07-CMF/

GBD07-CMF

 20 16.5 16.5 3.45 393 15.88*3 19.05 12.7

GAD08-CMF/

GBD08-CMF

 25 19 18.5 4.3 436 15.88*4 19.05 12.7

GAD10-CMF/

GBD10-CMF

 30 24 24 5.15 480 15.88*4 19.05 12.7

GAD12-CMF/

GBD12-CMF

 38 30 30 6.5 538 15.88*4 19.05 12.7



Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃



Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.

Products Detail:

Steel Shell Multi Tubular Heat Exchanger GAD07-CMF-3 ISO9001 Approved 0
Steel Shell Multi Tubular Heat Exchanger GAD07-CMF-3 ISO9001 Approved 1
Steel Shell Multi Tubular Heat Exchanger GAD07-CMF-3 ISO9001 Approved 2
