Name: REACH Air To Water Heat Exchanger , Air Source Heat Pump Heat Exchanger
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: RAH07-CMF
Price: 30.00 USD
Availability: InStock

Home > products > Air Source Heat Exchanger >

REACH Air To Water Heat Exchanger , Air Source Heat Pump Heat Exchanger

REACH Air To Water Heat Exchanger

Heat Pump Heat Exchanger Air To Water

Air Source Heat Pump Heat Exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS 2.0，REACH，CE

Model Number:

RAH07-CMF

Request A Quote

REACH Air To Water Heat Exchanger , Air Source Heat Pump Heat Exchanger

Product Details

Applicable Industries:

Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops

Maximum Working Pressure:

5.2MPa

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Heating Capacity::

19KW

Cooling Capacity::

15KW

Refrigerant Inlet::

19.05mm

Refrigerant Outlet::

12.7mm

Water Connection::

19.05mm

Certification::

ISO9001,RoHS 2.0,REACH,CE And Patents

Liquid Flow Rate:

3.27M3/h

Highlight:

REACH Air To Water Heat Exchanger

Heat Pump Heat Exchanger Air To Water

Air Source Heat Pump Heat Exchanger

Payment & Shipping Terms

Minimum Order Quantity

10units

Price

$243.00/units 10-50 units

Packaging Details

Plywood Packing Crates and Boxes

Delivery Time

15days

Payment Terms

T/T

Supply Ability

1500 Units per Month

Gimleo Air Source Heat Exchanger For Water Heater With 1 Inch Water Connection And GY-0154C 15 KG

Get Best Price

Best 7kw Water Air Heat Exchanger RAH03-CMF for Liquid Flow Rate 1.2M 3/h

Get Best Price

25.4mm double tubes small volume efficient tank safety heat exchanger for water-source air conditioner, industry chiller

Get Best Price

Customizable Air Source Heat Exchanger For Industrial And Commercial Applications

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

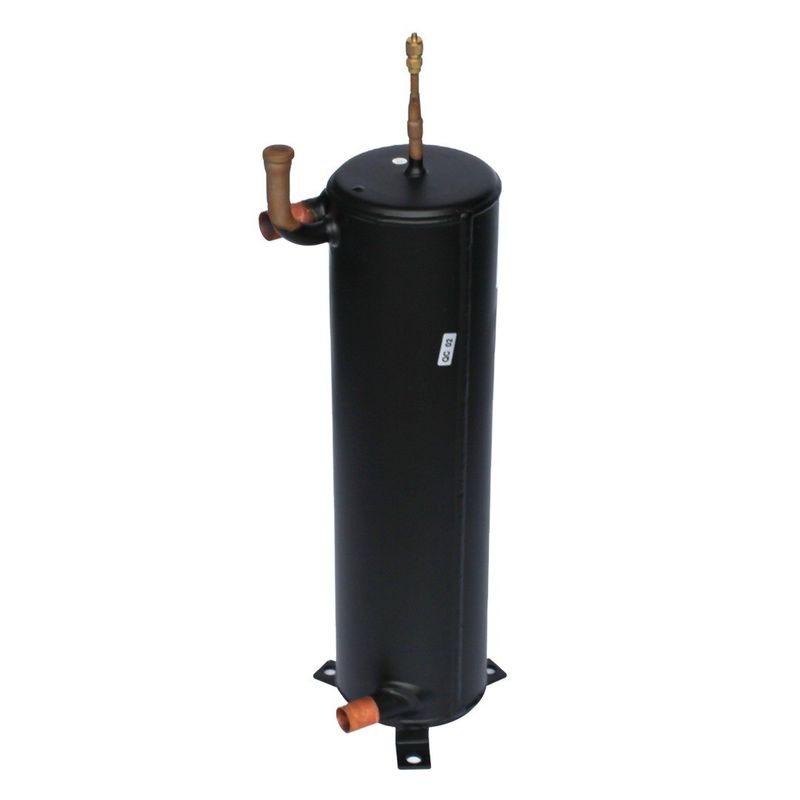

REACH Certified Air to Water Heat Pump Heat Exchanger RAH07-CMF with High Cost Efficiency

Description:

Introducing the RAH07-CMF, a cutting-edge heat exchanger from Gimleo’s R Series, specifically designed for exceptional heating capabilities. This advanced unit ensures optimal energy transfer, providing reliable heating solutions for a diverse range of industrial and commercial applications.

The RAH07-CMF features a unique flow-around structure, enhancing thermal efficiency and reducing operational costs by minimizing the length of copper pipes required. Constructed with high-grade materials, this heat exchanger promises durability and consistent performance even in demanding conditions. Its compact design simplifies installation and maintenance, making it a versatile solution for modern thermal management needs.

With a powerful heating capacity of 18 kW, the RAH07-CMF is ideal for applications requiring robust and efficient heating. Trust in Gimleo’s R Series for superior performance and energy efficiency.

Quick Detail:

1. 19.05mm Finned Copper Tubes: Uses 19.05mm finned copper tubes for superior heat exchange efficiency.

2. Cost-Effective: Designed to be low cost while maintaining high performance.

3. Compact Volume: Space-efficient design that simplifies installation and saves space.

4. Flow-Around Structure: Innovative design that enhances heating efficiency by reducing the length of copper pipes needed.

5. Extreme Heating Efficiency: Engineered to deliver optimal thermal performance in various applications.

Specification:

R Seriese Heat Exchanger

Model	Heating capacity1(KW)	Heating capacity2(KW)	Cooling capacity(KW)	Water flow(m3/h)	Height(mm)	Spacing of water connection (mm)	Refrigerant inlet(mm)	Refrigerant outlet(mm)
RAH02-CMF/ RBH02-CMF	5	3.5	3	0.86	221	186	12.7	9.52
RAH03-CMF/ RBH03-CMF	7	5	4	1.2	261	180	12.7	9.52
RAH04-CMF/ RBH04-CMF	10	7.5	6.5	1.72	331	250	15.88	9.52
RAH05-CMF/ RBH05-CMF	13	9.5	8.5	2.24	308	220	15.88	9.52
RAH06-CMF/ RBH06-CMF	16	12	11	2.75	353	265	15.88	9.52
RAH07-CMF/ RBH07-CMF	19	14	13	3.27	396	308	19.05	12.7
RAH08-CMF/ RBH08-CMF	22	16	14	3.78	440	352	19.05	12.7
RAK05-CMF/ RBK05-CMF	13	9.5	8.5	2.24	415	380	19.05	12.7
RAK06-CMF/ RBK06-CMF	16	12	10	2.75	463	382	19.05	12.7

Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃

Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
