Name: Seamless Pure Titanium Tube Heat Exchanger Corrosion Resistance PVC Shell MHTA-1
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: MHTA-1
Price: 25.00 USD
Availability: InStock

Home > products > Chiller Heat Exchanger >

Seamless Pure Titanium Tube Heat Exchanger Corrosion Resistance PVC Shell MHTA-1

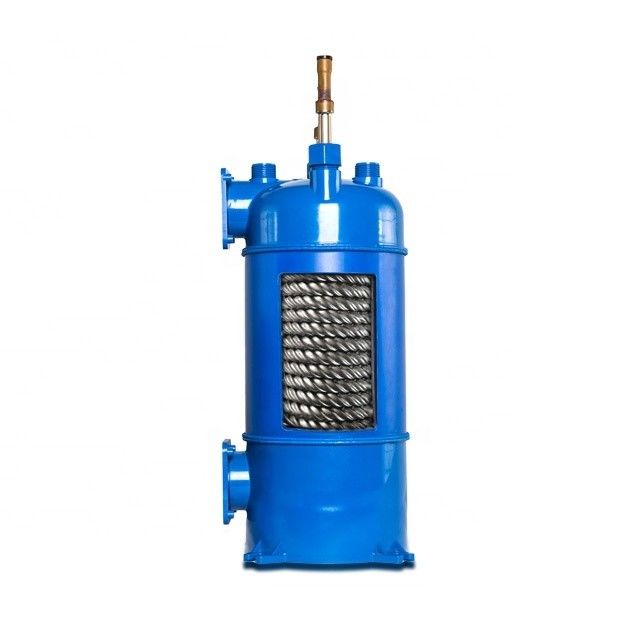

Pure Titanium Tube Heat Exchanger

Titanium Tube Heat Exchanger Corrosion Resistance

Corrosion Resistant Heat Exchanger MHTA-1

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Model Number:

MHTA-1

Request A Quote

Product Details

Applicable Industries:

Building Material Shops, Food & Beverage Factory, Retail, Construction Works

Video Outgoing-inspection:

Not Available

Machinery Test Report:

Not Available

Warranty Of Core Components:

1 Year

Condition:

New

Maximum Working Pressure:

0.5mpa

Weight:

3.6 KG

Dimension(L*W*H):

250*180*410mm

Power:

3500

Warranty:

1 Year

Working Temperature Range:

0~40℃

Key Selling Points:

Energy Saving, R410a

Heat Capacity:

3.5kw (12,000BTU/h)

Used As:

Condenser

Shell Material:

PVC

Tube Material:

Pure Titanium Seamless Tube

Local Service Location:

None

Structure:

Tube Heat Exchanger

Liquid Flow Rate:

1.5m3/h

Highlight:

Pure Titanium Tube Heat Exchanger

Titanium Tube Heat Exchanger Corrosion Resistance

Corrosion Resistant Heat Exchanger MHTA-1

Payment & Shipping Terms

Price

$92.00/sets 1-49 sets

Packaging Details

Wooden box

1HP Water Chiller Heat Exchanger MHTA-0.75 Made Of Pure Titanium Seamless Tube For Commercial Cooling

Get Best Price

Video

7kw 24 Heat Capacity Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller MHTA-2 For Industrial Cooling System

Get Best Price

Video

Food Beverage Shops 10kw Chiller Heat Exchanger With And Max Working Pressure 5.2MPa For ETA-1.5

Get Best Price

Video

Chiller Heat Exchanger Screwed Titanium Tube Heat Exchanger PVC Shell For Evaporator MHTA-3

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA-1

Products Description

Product name	PVC Titanium Heat Exchanger (Heat or Cool mode)
Type	MHTA series
Model number	MHTA-1
Heating capacity	3.5kw
Water flow	1.5m³/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, exhibits outstanding resistance to corrosion in a wide range of aggressive media.

Due to its good properties ,the titanium heat exchanger widely used in: Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Food industry, Electroplating industry and some heat recovery from the waste water or exhaust gas.

Product Features :

• Self-patented technology.
• Seamless pure titanium tube has super strong corrosion proof ability and high intensity.
• Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure in water side can be 2.5 MPa. Titanium tube can stand 5.2MPa high pressure.

• Its loading capacity can pass the CE, UL, ETL requirement, 100,000 times alternating pressure test shows it can be used more than 20 years

Product material :

[ The heat transfer tube ]: Seamless pure titanium tube . Thickness 0.6 mm. The Grade is TA1

[ Shell ]:high quality PVC material . All the parts RoHS conformance.

Details Images

Product Application

Product Categories

Company Profile

Company Introduction

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
