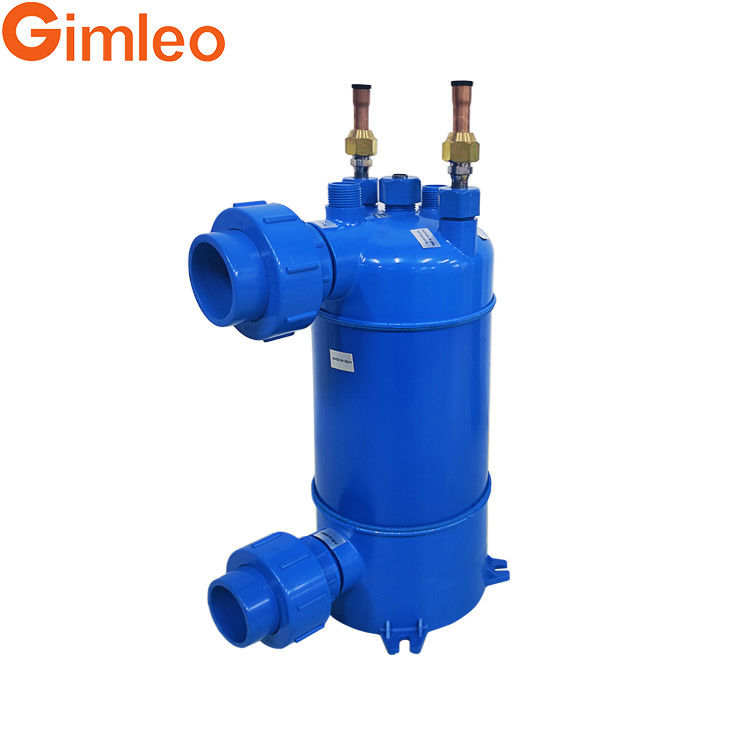

Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA1

Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA1

Screwed Titanium Tube Heat Exchanger

PVC Shell Heat Exchanger

Aquarium Chiller Heat Exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Model Number:

MHTA-1

Contact Us
Request A Quote
Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA1
Product Details
Applicable Industries:
Building Material Shops, Food & Beverage Factory, Retail, Construction Works
Warranty Of Core Components:
1 Year
Maximum Working Pressure:
0.5mpa
Weight:
3.6 KG
Power:
3500
Working Temperature Range:
0~40℃
Key Selling Points:
Energy Saving, R410a
Heat Capacity:
3.5kw (12,000BTU/h)
Used As:
Condenser
Shell Material:
PVC
Tube Material:
Pure Titanium Seamless Tube
Highlight:

Screwed Titanium Tube Heat Exchanger

,

PVC Shell Heat Exchanger

,

Aquarium Chiller Heat Exchanger

Payment & Shipping Terms
Price
$92.00/sets 1-49 sets
Packaging Details
Wooden box
RELATED PRODUCTS
Good price 1HP Water Chiller Heat Exchanger MHTA-0.75 Made Of Pure Titanium Seamless Tube For Commercial Cooling online Video

1HP Water Chiller Heat Exchanger MHTA-0.75 Made Of Pure Titanium Seamless Tube For Commercial Cooling

Get Best Price
Good price 7kw 24 Heat Capacity Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller MHTA-2 For Industrial Cooling System online Video

7kw 24 Heat Capacity Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller MHTA-2 For Industrial Cooling System

Get Best Price
Good price Food Beverage Shops 10kw Chiller Heat Exchanger With And Max Working Pressure 5.2MPa For ETA-1.5 online Video

Food Beverage Shops 10kw Chiller Heat Exchanger With And Max Working Pressure 5.2MPa For ETA-1.5

Get Best Price
Good price Chiller Heat Exchanger Screwed Titanium Tube Heat Exchanger PVC Shell For Evaporator MHTA-3 online Video

Chiller Heat Exchanger Screwed Titanium Tube Heat Exchanger PVC Shell For Evaporator MHTA-3

Get Best Price
Contact Us
+8618929900710
sales06@gimleo.com
86-757-2837-8561
Contact Now
Product Description

Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA1



Product Introduction :

Our Titanium Heat Exchanger utilizes seamless pure titanium tubes, renowned for their exceptional corrosion resistance across a wide range of aggressive environments. Whether it's high-salinity marine systems, demanding food industry applications, or solar energy heaters, this heat exchanger provides unparalleled performance in corrosive conditions.

Applications:

  • Swimming Pool Equipment
  • Aquarium Chillers
  • Marine Refrigerant Systems
  • Solar Energy Heaters
  • Aquaculture
  • Food Industry
  • Electroplating Industry
  • Heat Recovery from Wastewater or Exhaust Gas


Product Features :

  • Self-Patented Technology: Cutting-edge design backed by exclusive technology.
  • Corrosion Resistance: Seamless pure titanium tube ensures superior corrosion resistance.
  • High Pressure Endurance: PVC shell withstands up to 2.5 MPa on the water side, while the titanium tube can handle 5.2 MPa.
  • Long-Lasting Durability: Undergoes rigorous testing (100,000 alternating pressure tests), guaranteeing over 20 years of reliable use.
  • Industry Compliance: Meets CE, UL, and ETL standards for high safety and quality.


Product material :

[ The heat transfer tube ]: Seamless pure titanium tube . Thickness 0.6 mm. The Grade is TA1
[ Shell ]:high quality PVC material . All the parts RoHS conformance.



Products Description
Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA1 0
Screwed Titanium Tube PVC Shell Heat Exchanger For Aquarium Chiller Evaporator MHTA1 1
Product name
PVC Titanium Heat Exchanger (Heat or Cool mode)
Type
MHTA series
Model number
MHTA-1
Heating capacity
3.5kw
Water flow
1.5m³/h
Use as
Condenser,Evaporator
