Name: Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: RAH04-CMF
Price: 29.00 USD
Availability: InStock

Home > products > Tube In Shell Heat Exchanger >

Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures

Durable Tube In Shell Heat Exchanger

Versatile Tube In Shell Heat Exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Model Number:

RAH04-CMF

Request A Quote

Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures

Product Details

Applicable Industries:

Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops

Liquid Flow Rate:

1.72m³/h

Maximum Working Pressure:

5.2Mpa

Refrigerant Inlet:

15.88mm

Color:

Black

Refrigerant:

R12,R404a,R22/R410A,etc,R407C

Shell Material:

Carbon Steel

Showroom Location:

None

Marketing Type:

Ordinary Product

Highlight:

Durable Tube In Shell Heat Exchanger

Versatile Tube In Shell Heat Exchanger

Payment & Shipping Terms

Minimum Order Quantity

10units

Price

$99.70/units 10-49 units

Packaging Details

Plywood Packing Crates and Boxes

Delivery Time

15days

Payment Terms

T/T

Supply Ability

1500 Piece/Pieces per Month

Gimleo GAD06-CMF 17kW Spiral Copper Tube Heat Exchanger For Easy Installation And Maintenance And Durable Performance

Get Best Price

Video

Tube In Shell Heat Exchanger For High Pressure High Temperature RAK06-CMF

Get Best Price

Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application

Get Best Price

Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

Versatile and Durable Tube In Shell Heat Exchanger for Various Fluids and Temperatures

Description:

The **RAH04-CMF** from Gimleo’s **R Series** is a high-performance heat exchanger designed for **superior heating efficiency**, specifically optimized for **R32 refrigerant gas**. Its innovative **flow-around structure** reduces copper pipe length, enhancing thermal efficiency and lowering operational costs. Built with **high-quality materials**, it ensures **durability** and **consistent performance**, while its **compact and robust design** simplifies installation and maintenance. With a **heating capacity of 10 kW**, the RAH04-CMF is ideal for industrial and commercial applications requiring **reliable and efficient thermal management**. Experience advanced energy efficiency and performance with the RAH04-CMF, a versatile solution for modern heating needs.

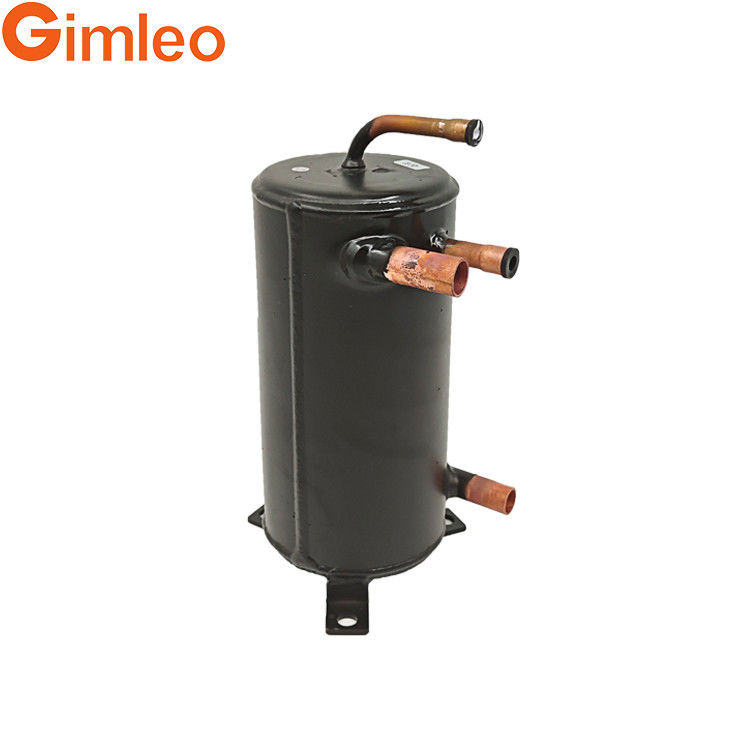

Versatile And Durable Tube In Shell Heat Exchanger For Various Fluids And Temperatures 0

Quick Detail:

1. 19.05mm Finned Copper Tubes: Utilizes 19.05mm finned copper tubes for exceptional heat exchange efficiency.

2. Optimized for R32 Refrigerant Gas: Ensures efficient and reliable thermal management using environmentally friendly R32 refrigerant gas.

3. Low Cost: Designed to be cost-effective without compromising on performance.

4. Compact Volume: Space-saving design simplifies installation and is perfect for tight spaces.

5. Flow-Around Structure: Enhances heating efficiency by reducing the length of copper pipes, thus lowering costs.

6. Extreme Heating Efficiency: Engineered for high performance in various industrial and commercial heating applications.

Specification:

R eriese Heat Exchanger

Model	Heating capacity1(KW)	Heating capacity2(KW)	Cooling capacity(KW)	Water flow(m3/h)	Height(mm)	Spacing of water connection (mm)	Refrigerant inlet(mm)	Refrigerant outlet(mm)
RAH02-CMF/ RBH02-CMF	5	3.5	3	0.86	221	186	12.7	9.52
RAH03-CMF/ RBH03-CMF	7	5	4	1.2	261	180	12.7	9.52
RAH04-CMF/ RBH04-CMF	10	7.5	6.5	1.72	331	250	15.88	9.52
RAH05-CMF/ RBH05-CMF	13	9.5	8.5	2.24	308	220	15.88	9.52
RAH06-CMF/ RBH06-CMF	16	12	11	2.75	353	265	15.88	9.52
RAH07-CMF/ RBH07-CMF	19	14	13	3.27	396	308	19.05	12.7
RAH08-CMF/ RBH08-CMF	22	16	14	3.78	440	352	19.05	12.7
RAK05-CMF/ RBK05-CMF	13	9.5	8.5	2.24	415	380	19.05	12.7
RAK06-CMF/ RBK06-CMF	16	12	10	2.75	463	382	19.05	12.7

Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃

Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
