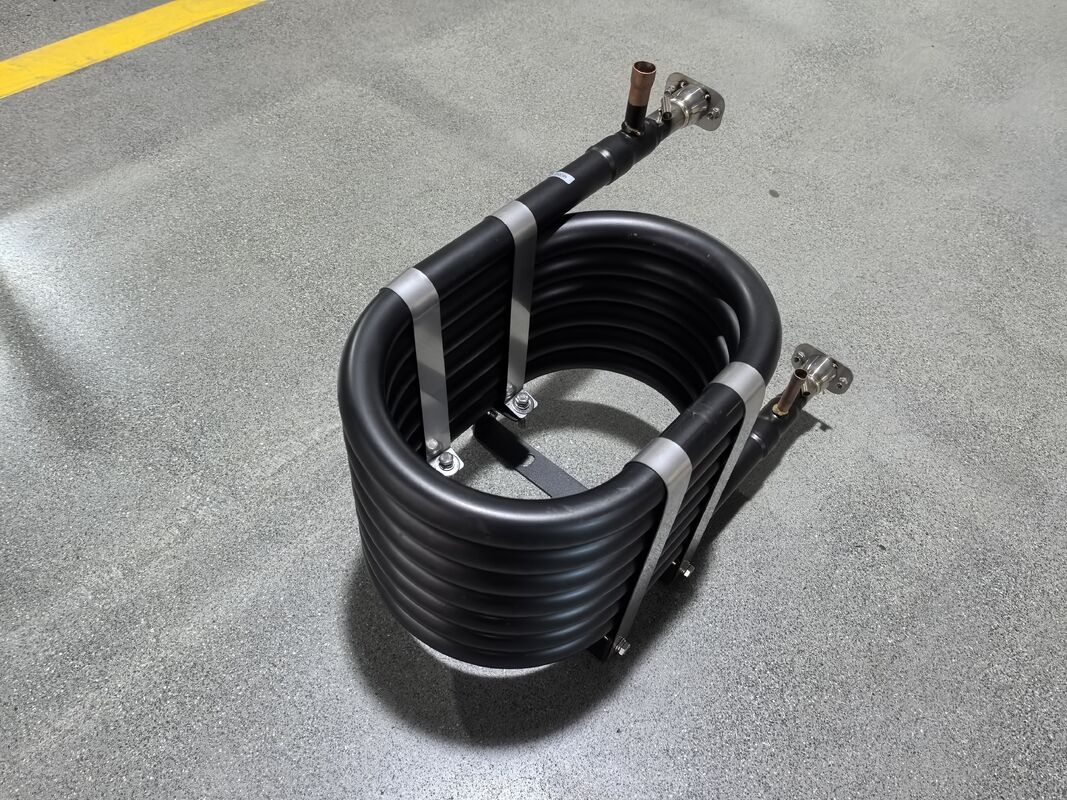

Product Description:
The Coaxial Heat Exchanger is a highly efficient and reliable solution designed to meet the demanding requirements of various industrial applications. Known for its robust construction and superior thermal performance, this product stands out as an essential component in systems requiring effective heat transfer under challenging conditions. With a working pressure range of 0.1 to 10 MPa, the Coaxial Heat Exchanger is well-suited for both low and high-pressure environments, ensuring versatility across multiple sectors.
One of the standout features of this heat exchanger is its ability to effectively prevent freezing. This characteristic is particularly important in applications where temperature control is critical, and freezing could lead to equipment damage or operational failure. The design incorporates advanced engineering principles that maintain fluid temperatures within safe ranges, thereby enhancing system reliability and longevity.
Operating at a refrigerant pressure of 3.5 MPa, the Coaxial Heat Exchanger is optimized for use with various refrigerants, making it an excellent choice for HVAC systems, refrigeration units, and other cooling applications. Its maximum working pressure of 5.2 MPa further underscores its capability to handle demanding operational conditions without compromising performance or safety.
The heat exchanger features a tube length ranging from 1 to 10 meters, providing flexibility to accommodate different installation requirements and space constraints. This range allows for customization based on specific thermal exchange needs, ensuring optimal heat transfer efficiency. The coaxial design, involving concentric tubes, facilitates a streamlined flow of fluids, which enhances heat exchange rates and reduces pressure drops.
In addition to its coaxial configuration, this product is often compared with and complements other heat exchanger types such as the double pipe heat exchanger and the finned tube heat exchanger. The double pipe heat exchanger is known for its straightforward design and ease of maintenance, making it suitable for simpler applications. On the other hand, the finned tube heat exchanger offers increased surface area for heat transfer, which is beneficial in situations requiring enhanced thermal performance. The Coaxial Heat Exchanger combines the strengths of these designs by providing efficient heat transfer in a compact and durable form, making it ideal for marine heat exchanger applications where space and reliability are critical.
Marine heat exchangers demand equipment that can withstand harsh environments, including exposure to saltwater and fluctuating temperatures. The Coaxial Heat Exchanger meets these challenges with its robust construction materials and corrosion-resistant design. Its ability to operate effectively at varying pressures and temperatures makes it a preferred choice for shipboard cooling systems, engine cooling, and other marine thermal management needs.
Furthermore, the Coaxial Heat Exchanger’s design ensures minimal maintenance requirements, reducing downtime and operational costs. Its efficient prevention of freezing not only protects the unit itself but also safeguards connected systems from potential damage caused by ice formation. This feature is crucial in marine applications and cold climates where freezing is a common risk.
In summary, the Coaxial Heat Exchanger is a versatile, durable, and efficient heat transfer solution that excels in a wide range of applications. Its working pressure capacity of up to 10 MPa, refrigerant pressure handling at 3.5 MPa, and maximum working pressure of 5.2 MPa ensure it can meet rigorous industrial demands. With tube lengths customizable from 1 to 10 meters and a design that effectively prevents freezing, it stands out as a superior choice among heat exchangers. Whether used as a marine heat exchanger or in conjunction with double pipe heat exchanger and finned tube heat exchanger systems, it delivers reliable performance and long-term value.
Applications:
The Titanium Coaxial Condenser is an advanced heat exchange device designed for a wide range of applications across various industries. Its robust construction allows it to operate efficiently within a working temperature range of -50 to 150℃, making it highly versatile for both low-temperature refrigeration and moderate heating processes. This product is particularly suited for systems using common refrigerants such as R22, R134a, R407c, and R410a, ensuring compatibility with many existing refrigeration and air conditioning setups.
One of the primary application occasions for the Titanium Coaxial Condenser is in HVAC systems where reliable heat transfer and corrosion resistance are critical. The coaxial design enhances heat exchange efficiency by promoting better fluid dynamics between the inner and outer tubes, which is especially beneficial in environments with fluctuating temperatures and pressures. With a refrigerant pressure rating of 3.5 MPa and a maximum working pressure of 5.2 MPa, this heat exchanger is well-suited for high-pressure refrigerant circuits, guaranteeing durability and safety in demanding operational conditions.
In industrial refrigeration scenarios, the Titanium Coaxial Condenser excels by providing superior resistance to corrosive environments, such as those encountered in marine applications or chemical processing plants. Its ability to handle working pressures from 0.1 to 10 MPa allows it to be integrated into a variety of systems ranging from small-scale refrigeration units to large-scale industrial chillers. This flexibility ensures that it can be adapted easily to different process requirements without compromising performance.
Additionally, the Titanium Coaxial Condenser is frequently employed in renewable energy systems, such as geothermal heat pumps and solar cooling units, where stable and efficient heat exchange is vital. The use of titanium material not only enhances corrosion resistance but also extends the lifespan of the heat exchanger in harsh conditions. When combined with a Finned Tube Heat Exchanger in a system, it can optimize overall heat transfer performance, reducing energy consumption and operational costs.
In summary, the Titanium Coaxial Condenser is ideal for applications requiring high reliability, excellent corrosion resistance, and adaptability to a broad range of pressures and temperatures. Whether integrated into residential air conditioning, commercial refrigeration, industrial cooling, or renewable energy systems, it provides a durable and efficient solution. Its compatibility with multiple refrigerants like R22, R134a, R407c, and R410a, combined with its capacity to operate safely up to 5.2 MPa, makes it a preferred choice for engineers and system designers aiming for optimal thermal management.
Customization:
Our Coaxial Heat Exchanger product offers exceptional customization services to meet your specific requirements. Designed with high corrosion resistance, this heat exchanger ensures long-lasting durability and reliable performance in various applications. With a refrigerant pressure rating of 3.5 MPa, it is perfectly suited for demanding HVAC systems.
The water connection is standardized at 3/4 inch, providing compatibility with most existing plumbing setups. The overall height of the unit is 520 mm, but the size can be fully customized to fit your unique installation needs.
This coaxial heat exchanger is an ideal solution for Heat Pump Condenser applications, delivering efficient heat transfer and optimal energy savings. Whether you need a compact or larger HVAC coaxial heat exchanger, our customization services guarantee a product tailored specifically for your system.
Support and Services:
Our Coaxial Heat Exchanger product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive installation guidance, operational training, and maintenance advice to maximize the efficiency and lifespan of your heat exchanger.
Technical support services include troubleshooting assistance, performance analysis, and recommendations for system integration. Our experts are available to help diagnose issues, suggest improvements, and provide detailed documentation to support your engineering needs.
In addition to support, we offer a range of services including custom design consultation, on-site inspections, and preventative maintenance programs. Our goal is to deliver solutions that meet your specific application requirements while ensuring compliance with industry standards and regulations.
We are committed to continuous product improvement and customer feedback is highly valued. Please refer to our user manuals and technical datasheets for detailed specifications and operating instructions to ensure safe and efficient use of the Coaxial Heat Exchanger.
Packing and Shipping:
Product Packaging and Shipping for Coaxial Heat Exchanger
Our coaxial heat exchangers are carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with protective materials such as foam padding and plastic film to prevent damage from moisture, dust, and impact.
The heat exchangers are then placed inside sturdy wooden crates or reinforced cardboard boxes, customized to fit the product dimensions. The packaging is clearly labeled with handling instructions, including “Fragile" and “This Side Up" markers to ensure proper care.
For international shipments, we comply with all relevant export regulations and provide necessary documentation including packing lists, certificates of origin, and customs declarations to facilitate smooth customs clearance.
We offer multiple shipping options tailored to customer needs, including air freight for urgent deliveries and sea freight for economical bulk shipments. Our logistics partners ensure timely and reliable delivery to your specified location.
Upon receipt, customers are advised to inspect the packaging and product for any visible damage and report any issues immediately to our customer service team for prompt resolution.
FAQ:
Q1: What is a coaxial heat exchanger and how does it work?
A coaxial heat exchanger is a device designed to transfer heat between two fluids flowing through concentric tubes. One fluid flows through the inner tube while the other flows through the outer tube, allowing efficient heat exchange with minimal pressure drop.
Q2: What materials are used in the construction of the coaxial heat exchanger?
Our coaxial heat exchangers are typically constructed from high-quality stainless steel or copper alloys, which offer excellent corrosion resistance and thermal conductivity to ensure durability and efficient heat transfer.
Q3: What are the common applications of the coaxial heat exchanger?
Coaxial heat exchangers are widely used in HVAC systems, refrigeration, chemical processing, and marine applications due to their compact design and ability to handle high pressure and temperature variations.
Q4: What temperature and pressure ranges can the coaxial heat exchanger handle?
Our coaxial heat exchangers can operate efficiently within a temperature range of -40°C to 250°C and withstand pressures up to 30 bar, making them suitable for various industrial applications.
Q5: How do I maintain and clean the coaxial heat exchanger to ensure optimal performance?
Regular maintenance involves flushing the exchanger to remove any fouling or deposits. Cleaning can be performed using chemical cleaning agents compatible with the materials or by mechanical means if accessible. Routine inspection helps maintain efficiency and prolong the product life.
