Product Description:
The Coaxial Heat Exchanger is an advanced tube in tube heat exchanger designed to deliver high thermal efficiency in a compact and reliable form. Engineered with a spiral twisting construction, this innovative heat exchanger ensures optimal heat transfer performance while maintaining a robust and durable structure. With its versatile operating temperature range from -50°C to 150°C, the Coaxial Heat Exchanger is suitable for a wide variety of industrial and commercial applications, providing efficient thermal management in challenging environments.
This heat exchanger features a unique coaxial design, often referred to as a Coaxial Water Cooled Condenser, which enables the effective cooling and condensation of fluids within a compact footprint. By leveraging the double pipe heat exchanger principle, the Coaxial Heat Exchanger allows two fluids to flow concentrically—one inside the inner tube and the other in the annular space between the inner and outer tubes. This arrangement promotes efficient heat transfer through direct contact of the tube surfaces, minimizing thermal resistance and maximizing performance.

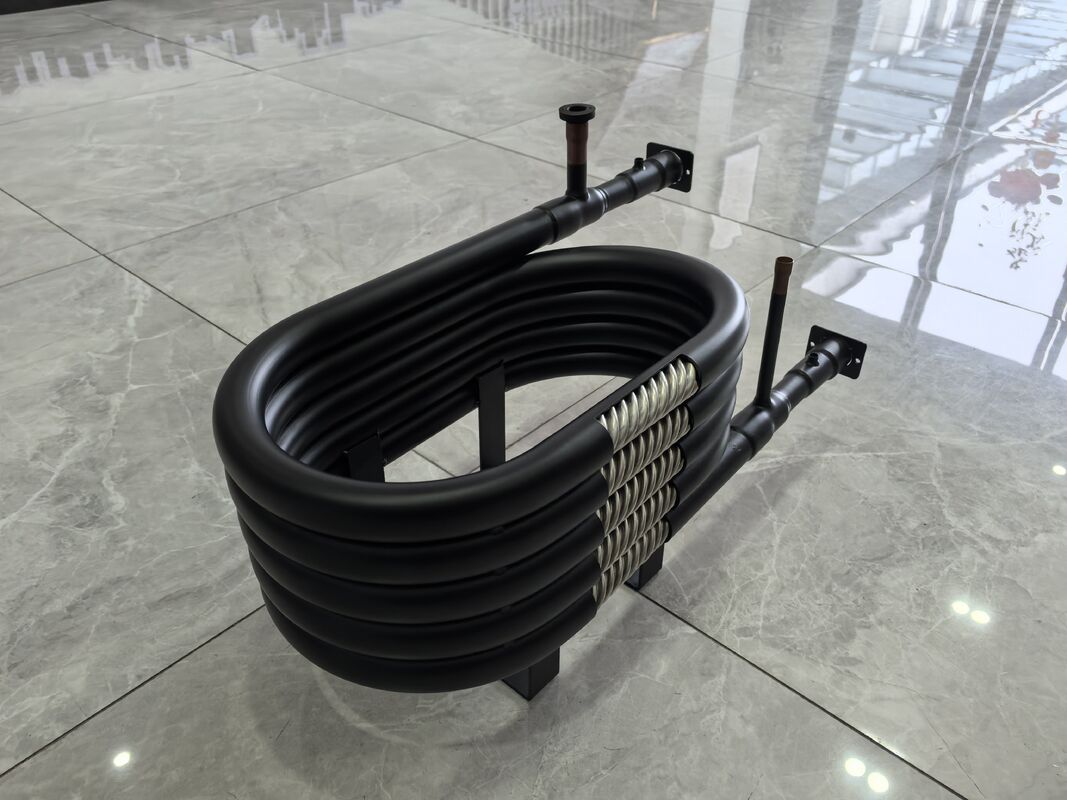

The spiral twisting construction of the Coaxial Heat Exchanger plays a critical role in enhancing heat transfer efficiency. This design induces turbulent flow within the tubes, which significantly improves the convective heat transfer coefficient. As a result, the exchanger achieves higher thermal efficiency compared to conventional designs such as finned tube heat exchangers. The spiral twisting also helps prevent fouling and scaling by promoting self-cleaning effects, thereby extending the service life and reducing maintenance requirements.
Available in a height range from 120 mm to 1000 mm, the Coaxial Heat Exchanger can be customized to fit specific spatial constraints and process requirements. This flexibility makes it an ideal choice for diverse industries including HVAC, chemical processing, refrigeration, and power generation. Whether used as a condenser, cooler, or heater, the exchanger’s high thermal efficiency ensures energy savings and improved system performance.
In comparison to traditional finned tube heat exchangers, the Coaxial Heat Exchanger offers several advantages. Its tube in tube design provides superior mechanical strength and resistance to pressure differences, making it suitable for high-pressure applications. Additionally, the coaxial water cooled condenser configuration reduces the need for additional cooling infrastructure, simplifying system design and reducing installation costs. The compactness of the double pipe heat exchanger also facilitates integration into existing systems where space is limited.
Operating effectively within a temperature range of -50°C to 150°C, the Coaxial Heat Exchanger can handle a broad spectrum of fluids, including water, oils, refrigerants, and various chemical solutions. This wide operating temperature range ensures compatibility with both low-temperature cooling processes and moderate-temperature heating applications. The materials and construction are carefully selected to withstand thermal cycling and corrosive environments, ensuring long-term reliability and consistent performance.
In summary, the Coaxial Heat Exchanger represents a state-of-the-art solution for efficient heat transfer in modern industrial processes. Its tube in tube heat exchanger configuration, combined with a spiral twisting construction, delivers high thermal efficiency and operational reliability. With customizable sizes ranging from 120 mm to 1000 mm in height and an extensive operating temperature range, this exchanger is adaptable to numerous applications. Whether utilized as a Coaxial Water Cooled Condenser, a double pipe heat exchanger, or an alternative to finned tube heat exchangers, it stands out as an optimal choice for engineers and system designers seeking superior performance and durability.
Applications:
The Gimleo COAXIAL-Z is a versatile and high-performance coaxial heat exchanger designed to meet the demanding needs of various industrial and commercial applications. Manufactured in China and certified with CE, ROHS, and REACH standards, this product ensures reliability and safety in every use. With a minimum order quantity of 20 sets and a competitive price range of 60 to 360 USD per set, the COAXIAL-Z offers excellent value without compromising on quality. Each unit is carefully packaged in a sturdy plywood case to guarantee safe delivery within 21 working days, supported by flexible payment terms of T/T with 100% payment upon order confirmation. The supply capacity of 500 sets per day ensures timely fulfillment of large orders.
The COAXIAL-Z model is specifically engineered for applications involving hot water heat exchange, heating, cooling, and chiller systems. Its high thermal efficiency makes it an ideal component in HVAC systems, where precise temperature control and energy conservation are critical. The product’s outer tube is made from durable SPHC steel tube material, ensuring long-lasting performance and resistance to wear and corrosion. Available in tube lengths ranging from 2 to 10 meters and heights between 120 and 1000 mm, the COAXIAL-Z can be customized to fit various installation requirements.
One of the most notable applications of the Gimleo COAXIAL-Z is as a Titanium Coaxial Condenser in advanced cooling systems. Its coaxial design allows for efficient heat transfer between fluids, making it a preferred choice for HVAC coaxiale heat exchangers in commercial buildings, industrial plants, and renewable energy systems. Whether used for domestic hot water systems, industrial heating, or complex cooling setups, the COAXIAL-Z delivers superior performance and energy savings.
In summary, the Gimleo COAXIAL-Z coaxial heat exchanger is well-suited for a wide range of heat transfer scenarios, including hot water heating, cooling, and chiller applications. Its robust construction, high efficiency, and compliance with international certifications make it a reliable and cost-effective solution for engineers and facility managers seeking to optimize their thermal management systems.
Customization:
Gimleo offers customized Product Customization Services for the COAXIAL-Z model, a high-quality coaxial heat exchanger designed to meet diverse industrial needs. Originating from CHINA and certified with CE, ROHS, and REACH, this HVAC coaxial heat exchanger ensures compliance with international standards.
With a minimum order quantity of 20 sets and a competitive price range of 60~360 USD per set, Gimleo provides flexible ordering options. Each unit is carefully packaged in a plywood case to guarantee safe delivery. The standard delivery time is 21 working days, supported by a supply ability of 500 sets per day, ensuring timely fulfillment of large orders.
The COAXIAL-Z features a spiral twisting construction and uses copper tubes for the inner tube material, contributing to its high thermal efficiency and effective prevention of freezing. Designed to operate under a maximum working pressure of 5.0MPa, this finned tube heat exchanger is ideal for HVAC applications requiring reliable and efficient heat transfer.
Payment terms are secure and straightforward, with 100% payment required upon order confirmation via T/T. Trust Gimleo's coaxial heat exchanger customization services to deliver tailored solutions that enhance system performance and durability.
Support and Services:
Our Coaxial Heat Exchanger products come with comprehensive technical support and services to ensure optimal performance and longevity. We provide detailed installation guidance, routine maintenance advice, and troubleshooting assistance to help you maximize efficiency.
Our technical team is available to assist with system design recommendations tailored to your specific application requirements. We offer training sessions for your staff to ensure proper handling and operation of the heat exchangers.
In addition, we supply a full range of replacement parts and accessories to support ongoing maintenance and repairs. Our service programs include regular inspection schedules and performance evaluations to detect and resolve potential issues early.
For any technical inquiries or support needs, our experts are ready to provide prompt and professional assistance, ensuring your Coaxial Heat Exchanger operates reliably under all conditions.
Packing and Shipping:
Our Coaxial Heat Exchanger is carefully packaged to ensure maximum protection during transit. Each unit is wrapped in protective foam and secured within a sturdy, custom-designed cardboard box to prevent any damage from shocks or vibrations. The packaging materials are chosen to be environmentally friendly while providing optimal cushioning.
For shipping, the product is placed on pallets and shrink-wrapped to maintain stability and facilitate easy handling. We work with trusted logistics partners to guarantee timely and safe delivery to your location. Tracking information will be provided once your order has been dispatched, allowing you to monitor the shipment status in real time.
Special shipping arrangements can be made upon request for oversized or urgent orders. Please contact our customer service team for any specific packaging or shipping requirements.
FAQ:
Q1: What is the brand and model number of the Coaxial Heat Exchanger?
A1: The Coaxial Heat Exchanger is branded as Gimleo and the model number is COAXIAL-Z.
Q2: Where is the Coaxial Heat Exchanger manufactured?
A2: The Coaxial Heat Exchanger is made in China.
Q3: What certifications does the Gimleo COAXIAL-Z have?
A3: The product is certified with CE, ROHS, and REACH standards.
Q4: What is the minimum order quantity and price range for this product?
A4: The minimum order quantity is 20 sets, with prices ranging from 60 to 360 USD per set.
Q5: How is the product packaged and what is the typical delivery time?
A5: The Coaxial Heat Exchanger is packed in plywood cases, and the delivery time is approximately 21 working days.
Q6: What are the payment terms and supply capacity for the Gimleo COAXIAL-Z?
A6: Payment terms are T/T with 100% payment required upon order confirmation. The supply ability is up to 500 sets per day.
