Product Description:

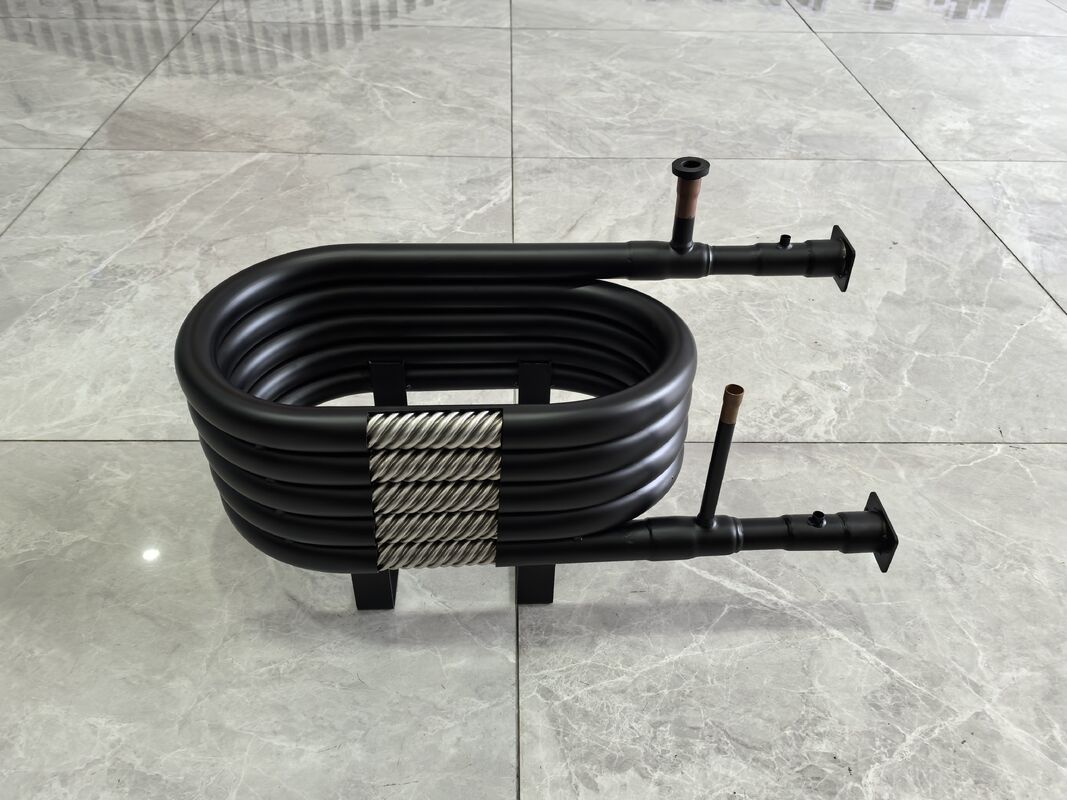

The Coaxial Heat Exchanger is a highly efficient and reliable solution designed for various thermal exchange applications, particularly in marine and HVAC systems. This specialized heat exchanger features a unique construction that allows for optimal heat transfer between two fluids while maintaining separation through a coaxial tube design. Its robust engineering and versatile performance make it an ideal choice for applications requiring precise temperature control and high durability.
One of the key features of this coaxial heat exchanger is its ability to handle different pressure conditions on both sides of the unit. The water side pressure is rated at 1.0 MPa, ensuring stable and secure operation within water systems. This is particularly important for applications where the inner tube is dedicated to the water system, providing efficient heat exchange without the risk of leaks or pressure-related failures. On the refrigerant side, the pressure rating is higher, at 4.2 MPa, accommodating the demands of refrigerant systems used in HVAC and marine environments. The ability to manage these distinct pressure levels simultaneously underscores the product’s robustness and suitability for complex thermal management tasks.
The gas that flows between the two tubes in this coaxial heat exchanger is part of the refrigerant system. This configuration is critical for HVAC and marine heat exchanger applications, where refrigerants are commonly used to transfer heat efficiently. The refrigerant system benefits from the coaxial design by achieving greater heat transfer efficiency, reduced risk of cross-contamination, and enhanced durability under varying thermal and pressure conditions. This makes the coaxial heat exchanger a preferred choice in systems where reliability and performance are paramount.
The heat capacity range of the coaxial heat exchanger is another significant attribute, offering flexibility to meet diverse operational requirements. With a heat capacity spanning from 6 kW to 300 kW, this heat exchanger can be implemented in small-scale HVAC systems as well as larger marine heat exchanger setups. This wide range allows for easy integration into different system sizes, providing engineers and designers with a versatile component that can be tailored to specific heat exchange needs. Whether the requirement is for modest residential HVAC systems or more demanding marine applications, this product delivers consistent and efficient thermal management.
In marine environments, where space is often limited and operational reliability is crucial, the marine heat exchanger variant of this coaxial heat exchanger stands out. Its compact design, combined with high pressure ratings and efficient heat transfer capabilities, makes it an excellent solution for shipboard HVAC systems and other marine thermal management applications. The ability to withstand harsh marine conditions, including corrosion and fluctuating pressures, ensures long service life and reduced maintenance costs. This reliability is essential in marine applications where downtime can be costly and inconvenient.
Similarly, for HVAC applications, the HVAC coaxial heat exchanger offers superior performance in heating, ventilation, and air conditioning systems. Its construction supports effective heat exchange between water and refrigerant, optimizing energy use and improving overall system efficiency. This makes it an indispensable component in modern HVAC system designs, where energy efficiency and environmental considerations are increasingly important. The coaxial heat exchanger’s durability and pressure handling capabilities also contribute to safer and more reliable operation, further enhancing its value in HVAC systems.
Overall, the coaxial heat exchanger combines advanced design, robust construction, and versatile performance to meet the demands of both marine and HVAC applications. Its ability to handle a water side pressure of 1.0 MPa and a refrigerant side pressure of 4.2 MPa, coupled with a heat capacity range of 6 to 300 kW, makes it a flexible and efficient choice for thermal exchange needs. Whether used as a marine heat exchanger or as an HVAC coaxial heat exchanger, this product delivers superior heat transfer, reliable operation, and long-lasting performance, making it a vital component in modern thermal management systems.
Applications:
The Gimleo Coaxial Heat Exchanger, model COAXIAL-Z, is a versatile and highly efficient solution designed for a wide range of application occasions and scenarios. As a premium product originating from China, it is certified with CE, ROHS, and REACH, ensuring compliance with international quality and safety standards. This makes it an ideal choice for industries and systems that demand reliable and durable heat exchange performance.
One of the primary application occasions for the Gimleo Coaxial Heat Exchanger is in water systems, where the inner tube is specifically designed to handle water efficiently. This makes it perfect for integration into Coaxial Water Cooled Condenser systems, where effective heat dissipation and coolant management are essential. The heat exchanger’s capability to handle heat capacities ranging from 6 to 300 kW allows it to be used in both small-scale residential units and large industrial setups, providing flexibility across various scales of operation.
In addition, the COAXIAL-Z model is extensively used as a Heat Pump Condenser. Heat pumps require highly efficient condensers to transfer heat effectively, and the coaxial design ensures optimal thermal conductivity and pressure resistance, withstanding refrigerant side pressures up to 4.2 MPa. This makes the Gimleo heat exchanger an excellent component in HVAC systems, refrigeration units, and renewable energy applications where heat pumps are employed to improve energy efficiency and reduce environmental impact.
Another significant application area is in systems requiring corrosion-resistant materials, such as marine or chemical processing environments. Here, the Titanium Coaxial Condenser variant of the Gimleo COAXIAL-Z offers superior durability and resistance against corrosion, extending the lifespan of equipment and reducing maintenance costs. This makes it suitable for harsh environments where conventional materials would fail.
With a minimum order quantity of 20 sets and a competitive price range of 60 to 360 USD per set, Gimleo provides both affordability and scalability. The product is packaged securely in plywood cases to ensure safe delivery through Shunde Port or customized loading ports as per customer requirements. The average delivery time of 21 working days and a supply ability of 500 sets per day guarantee timely fulfillment of large orders. Payment terms are straightforward with T/T and 100% payment required upon order confirmation, streamlining the procurement process.
Overall, the Gimleo Coaxial Heat Exchanger COAXIAL-Z is perfectly suited for diverse application occasions including water cooling systems, heat pump condenser units, and environments demanding titanium corrosion resistance. Its robust design, certified quality, and flexible supply options make it a trusted choice for engineers and project managers looking for reliable heat exchange solutions.
Customization:
Gimleo offers customized product solutions for the COAXIAL-Z model, a high-performance Titanium Coaxial Condenser designed for efficient heat transfer in HVAC systems. Manufactured in CHINA, this HVAC coaxiale heat exchanger features a unique Spiral Twisting Construction, with the inner tube dedicated to the Water System and refrigerant gas flowing between the two tubes, ensuring optimal heat capacity ranging from 6 to 300 kW.
As a leading Condenser Coils Manufacturer, Gimleo provides certified quality products with CE, ROHS, and REACH certifications. We support bulk orders with a minimum order quantity of 20 sets, priced between 60 to 360 USD per set. Each unit is securely packed in a plywood case to guarantee safe delivery.
Our supply capability stands at 500 sets per day, with a standard delivery time of 21 working days. Orders are processed upon 100% payment confirmation via T/T. Loading ports are flexible, with Shunde Port as standard or customized according to client requirements.
Trust Gimleo for reliable, efficient, and customizable coaxial heat exchanger solutions tailored to your HVAC and refrigeration needs.
Support and Services:
Our Coaxial Heat Exchanger product is designed to provide efficient thermal energy transfer in a compact and durable form. For technical support and services, we offer comprehensive assistance including installation guidance, operation optimization, maintenance procedures, and troubleshooting tips to ensure optimal performance and longevity of your heat exchanger.
Our technical support team is equipped to help you with system design consultations, performance evaluations, and custom configurations tailored to your specific application needs. We also provide detailed documentation, including user manuals, maintenance schedules, and parts catalogs to facilitate easy upkeep.
In addition to support services, we offer repair and refurbishment options to extend the life of your coaxial heat exchanger. Our skilled technicians use original parts and follow strict quality standards to restore your equipment to peak condition.
We are committed to delivering prompt and reliable service to minimize downtime and maximize efficiency in your operations. Whether you require routine maintenance or urgent technical assistance, our support services are here to help you achieve seamless and effective heat exchange solutions.
Packing and Shipping:
Our Coaxial Heat Exchanger is carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with protective materials and placed inside a sturdy, custom-designed carton to prevent any damage. For added safety, shock-absorbing inserts and waterproof wrapping are used as needed to safeguard against moisture and impact.
Shipping is available worldwide with reliable carriers offering tracking and insurance options. We ensure prompt dispatch and provide all necessary documentation for smooth customs clearance. Customers can choose from various shipping methods including air freight, sea freight, and express courier services based on their urgency and budget.
Upon delivery, please inspect the packaging and product thoroughly. If any damage or discrepancy is found, contact our customer service immediately for assistance. Our goal is to deliver your Coaxial Heat Exchanger in perfect condition and provide a seamless purchasing experience.
FAQ:
Q1: What is the brand and model number of the coaxial heat exchanger?
A1: The coaxial heat exchanger is branded Gimleo, and the model number is COAXIAL-Z.
Q2: Where is the Gimleo COAXIAL-Z heat exchanger manufactured?
A2: The Gimleo COAXIAL-Z heat exchanger is manufactured in China.
Q3: What certifications does the COAXIAL-Z heat exchanger have?
A3: The COAXIAL-Z heat exchanger holds CE, ROHS, and REACH certifications.
Q4: What is the minimum order quantity and price range for the COAXIAL-Z heat exchanger?
A4: The minimum order quantity is 20 sets, with prices ranging from 60 to 360 USD per set.
Q5: What are the packaging and delivery details for the Gimleo COAXIAL-Z heat exchanger?
A5: The heat exchanger is packaged in a plywood case, and the delivery time is 21 working days.
Q6: What payment terms and supply ability does Gimleo offer for the COAXIAL-Z model?
A6: Payment terms are T/T with 100% payment required upon order confirmation. Gimleo has a supply ability of 500 sets per day.
