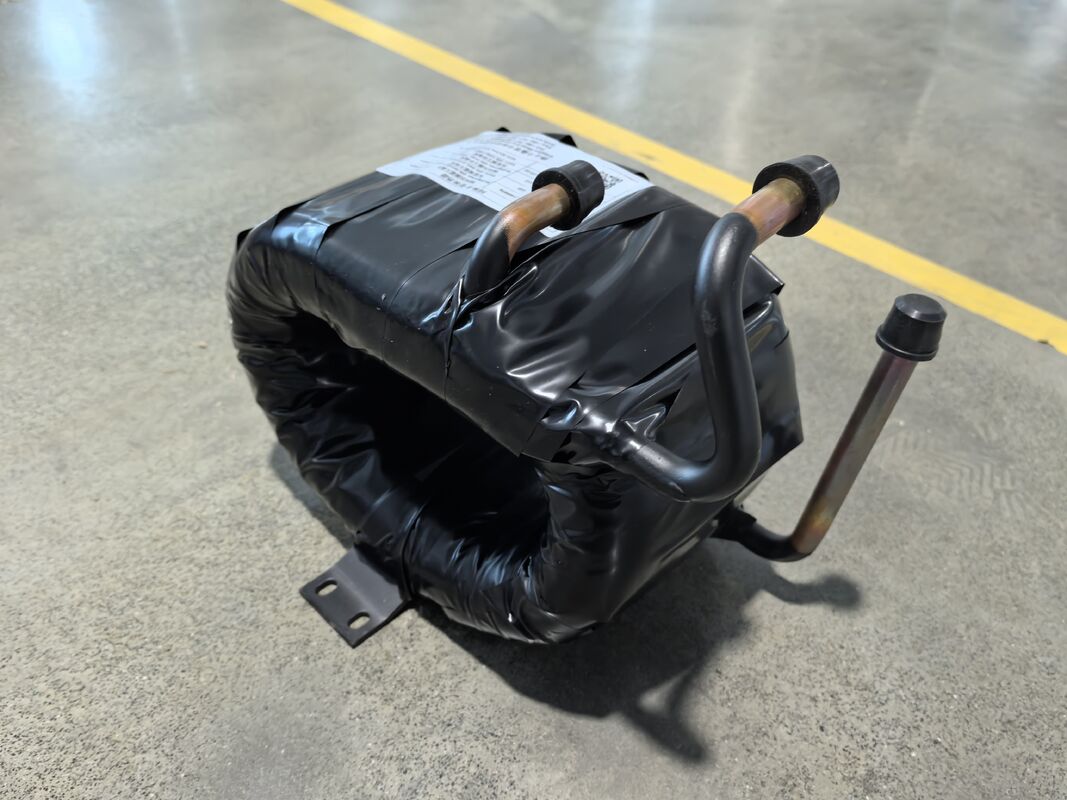

Product Description:
The Coaxial Heat Exchanger is a highly efficient and reliable solution designed primarily for marine applications, where robust performance and durability are critical. Featuring a distinctive tube-in-tube structure, this heat exchanger ensures optimal thermal transfer by allowing two fluids to flow concentrically within the system. The inner tube carries one fluid, while the outer tube carries another, facilitating efficient heat exchange between the two without any risk of mixing. This design is particularly advantageous in demanding environments such as those found on ships and offshore platforms, making it an essential component of marine heat exchanger systems.
One of the key strengths of this Coaxial Heat Exchanger lies in its ability to operate effectively within a working temperature range of 0℃ to 150℃. This wide temperature range makes it versatile for various marine applications, including refrigeration, heating, and cooling systems where temperature control is vital. The exchanger can handle thermal loads efficiently within this range, ensuring consistent performance and protecting other system components from thermal stress.
The refrigerant side of the heat exchanger is engineered to withstand pressures up to 4.2Mpa, making it suitable for high-pressure marine refrigeration systems. This pressure rating ensures that the exchanger maintains integrity and operational safety under demanding conditions, preventing leaks and ensuring continuous operation. The high-pressure tolerance is a critical attribute for marine heat exchangers, where reliability and safety standards are uncompromising.
A unique feature of this Coaxial Heat Exchanger is the use of a refrigerant system occupying the space between the two tubes. This design enhances the heat transfer efficiency by maximizing the contact surface area and optimizing the flow dynamics of the refrigerant. By utilizing the refrigerant system between the tubes, the exchanger achieves superior thermal performance, which is essential for maintaining optimal temperatures in marine refrigeration and air conditioning systems.
The construction of the heat exchanger incorporates a spiral twisting design, which significantly improves the heat transfer rate. The spiral twisting construction induces a turbulent flow within the tubes, disrupting boundary layers and enhancing convective heat transfer. This design not only increases the efficiency of the heat exchanger but also reduces the overall size and weight, which is particularly beneficial in marine environments where space and weight savings are highly valued. Additionally, the spiral twisting structure contributes to the durability and mechanical strength of the unit, ensuring long-term reliability even under harsh marine conditions.
Manufactured using high-grade stainless steel, this Coaxial Heat Exchanger exemplifies the qualities expected from a premium Stainless Steel Heat Exchanger. Stainless steel offers excellent corrosion resistance, which is crucial for marine applications exposed to seawater and humid environments. The material choice guarantees longevity, minimizes maintenance requirements, and ensures that the heat exchanger remains operational over extended periods without degradation. The robustness of stainless steel combined with the advanced design features makes this heat exchanger a trusted component in marine heat exchanger assemblies.
In summary, the Coaxial Heat Exchanger is a state-of-the-art marine heat exchanger designed to meet the rigorous demands of marine refrigeration and thermal management systems. Its tube-in-tube structure, broad working temperature range, high-pressure refrigerant capability, refrigerant system between tubes, and spiral twisting construction collectively contribute to its high performance and reliability. Constructed from premium stainless steel, it offers outstanding corrosion resistance and mechanical strength, making it an ideal choice for marine environments. Whether used in shipboard refrigeration, HVAC systems, or other marine thermal applications, this Stainless Steel Heat Exchanger delivers exceptional heat transfer efficiency and durability, ensuring smooth and efficient operation in challenging marine conditions.
Applications:
The Gimleo COAXIAL-Z coaxial heat exchanger is a versatile and highly efficient solution designed for a wide range of industrial and commercial applications. As a hot water heat exchanger, it excels in transferring heat between fluids with minimal energy loss, making it ideal for heating systems, refrigeration plants, and HVAC setups. Its robust spiral twisting construction and the use of superior SPHC steel for the shell material ensure durability and reliable performance under demanding conditions.
This double pipe heat exchanger is perfectly suited for scenarios that require compact design and efficient thermal transfer. Thanks to its coaxial design, the COAXIAL-Z model effectively manages refrigerant side pressure up to 4.2Mpa, making it an excellent choice for use as a Coaxial Water Cooled Condenser in refrigeration and air conditioning systems. It efficiently condenses refrigerants while maintaining optimal temperature control, contributing to energy savings and system longevity.
In industrial settings, the COAXIAL-Z is commonly applied in chemical processing plants, pharmaceuticals, and food and beverage industries where precise temperature regulation is critical. Its ability to handle heat capacities ranging from 6 to 300 kW allows it to be flexible across small to large-scale operations. Additionally, the refrigerant system gas located between the two tubes ensures maximum heat exchange efficiency, which is essential for maintaining operational stability and reducing downtime.
With certifications such as CE, ROHS, and REACH, the Gimleo COAXIAL-Z meets international standards for safety and environmental compliance, making it a reliable choice for global markets. Manufactured in China, each unit is packaged securely in a plywood case, ensuring safe delivery within 21 working days after order confirmation. The minimum order quantity is 20 sets, with a competitive price range of 60 to 360 USD per set, supported by flexible payment terms including T/T with 100% payment upon order confirmation.
Thanks to a supply ability of 500 sets per day, Gimleo can fulfill large volume orders efficiently, supporting projects that demand quick turnaround times. Whether used as a hot water heat exchanger, a Coaxial Water Cooled Condenser, or a double pipe heat exchanger, the COAXIAL-Z model combines advanced engineering with reliable materials to offer outstanding performance across various application occasions and scenarios.
Customization:
Gimleo offers customized Product Customization Services for the COAXIAL-Z model, a high-quality double Pipe Heat Exchanger designed with Spiral Twisting Construction to ensure optimal performance. This Coaxial Water Cooled Condenser is ideal for various applications, including marine heat exchanger systems, providing excellent heat capacity ranging from 6 to 300kw.
Manufactured in CHINA, the COAXIAL-Z meets international standards with CE, ROHS, and REACH certifications, guaranteeing reliability and safety. The working temperature range of 0℃ to 150℃ makes it suitable for diverse operational environments. We offer a minimum order quantity of 20 sets, with prices ranging from 60 to 360 USD per set, packed securely in plywood cases for safe delivery.
Our supply ability is 500 sets per day, with a delivery time of 21 working days from the Shunde Port or a customized loading port as per your requirements. Payment terms include T/T with 100% payment required upon order confirmation. The gas between the two tubes is designed for refrigerant systems, enhancing efficiency in heat exchange processes.
Support and Services:
Our Coaxial Heat Exchanger product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with installation guidance, operation training, and maintenance procedures to maximize efficiency and longevity of the equipment.
We offer detailed product documentation, including user manuals, installation guides, and troubleshooting tips to help you address common issues quickly and effectively. For complex technical challenges, our specialists provide remote diagnostics and on-site support to minimize downtime.
Regular maintenance services and inspection programs are available to keep your Coaxial Heat Exchanger operating at peak performance. We also provide customized solutions and upgrades tailored to your specific application needs.
Our commitment to quality and customer service ensures that you receive prompt and professional assistance throughout the lifecycle of your heat exchanger, helping you achieve reliable heat transfer and energy efficiency in your processes.
Packing and Shipping:
Our Coaxial Heat Exchanger is carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with protective materials and placed in a sturdy, custom-designed box to prevent any damage from impacts or vibrations. The packaging is labeled clearly with handling instructions and product details to facilitate smooth shipping and delivery.
We offer reliable shipping options worldwide, utilizing trusted carriers to guarantee timely and safe delivery of your Coaxial Heat Exchanger. Tracking information is provided for all shipments, allowing you to monitor your order from dispatch to arrival. Special shipping arrangements can be made upon request to accommodate specific requirements or expedited delivery.
FAQ:
Q1: What is the brand and model number of this coaxial heat exchanger?
A1: The brand name is Gimleo, and the model number is COAXIAL-Z.
Q2: Where is the Gimleo COAXIAL-Z coaxial heat exchanger manufactured?
A2: It is manufactured in China.
Q3: What certifications does the Gimleo COAXIAL-Z have?
A3: The product is certified with CE, ROHS, and REACH.
Q4: What is the minimum order quantity and the price range for this heat exchanger?
A4: The minimum order quantity is 20 sets, and the price ranges from 60 to 360 USD per set depending on specifications.
Q5: What are the payment terms and delivery time for orders of the COAXIAL-Z?
A5: Payment is made via T/T with 100% payment required upon order confirmation. Delivery time is 21 working days.
Q6: How are the Gimleo COAXIAL-Z heat exchangers packaged for shipment?
A6: They are packaged securely in plywood cases to ensure safe delivery.
Q7: What is the daily supply capacity for the Gimleo COAXIAL-Z heat exchanger?
A7: The supply ability is 500 sets per day.
