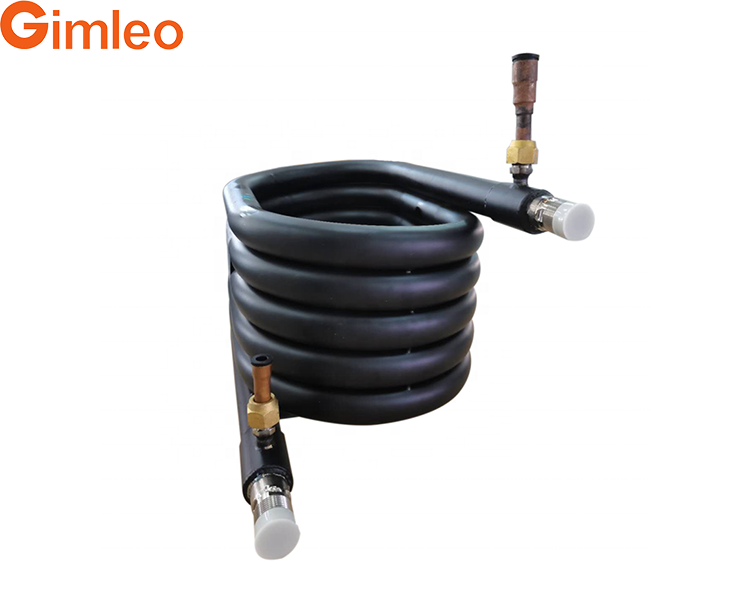

6kw Coaxial Heat Exchanger Tube in Tube Heat Exchanger (Z6)

6kw coaxial heat exchanger

tube in tube heat exchanger

Z6 coaxial heat exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Request A Quote

6kw Coaxial Heat Exchanger Tube in Tube Heat Exchanger (Z6)

Product Details

Video Outgoing-inspection:

Not Available

Machinery Test Report:

Not Available

Core Components:

Heat Exchanger Type:

Tube Heat Exchanger

Liquid Flow Rate:

0.7m^3/h(24.72ft3/h)

Maximum Pressure Rating:

5Mpa(725.19psi)

Voltage:

Dimension(l*w*h):

313*140*140

Warranty:

1 Year

Working Temperature Range:

-50~150℃

Key Selling Points:

High Safety Level

Material:

Copper

Weight (KG):

Product Name:

Coaxial Heat Exchanger

Heat Capacity:

6kw

Structure:

Coaxial

Tube Material:

Copper Tube

Shell Material:

Carbon Steel

Used As:

Condenser,Evaporator

Applicable Industries:

Refrigerant Equipment

Highlight:

6kw coaxial heat exchanger

tube in tube heat exchanger

Z6 coaxial heat exchanger

Payment & Shipping Terms

Minimum Order Quantity

Price

$71.65-128.96

6kw Coaxial Heat Exchanger Tube in Tube Heat Exchanger (Z6)

Get Best Price

Tube in Tube Heat Exchanger(Z15)

Get Best Price

Copper Coaxial Coil Heat Exchanger (Z18)

Get Best Price

Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger

Get Best Price

Contact Now

Product Description

Products Description

Product name	Coaxial Heat Exchanger
Type	copper tube in steel tube
Model number	GY-0040C
Heating capacity	4kw
Water flow	0.7m^3/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Coaxial heat exchanger is a recuperative heat exchanger. It consists of one inner twisted tube and one outer tube.Inner tube is separated the two media. Enable to heat exchange by using the common wall surface. Generally, the shell pass is for water, and the tube pass is for the air. It used a manner of countercurrent, which can be improved the effect of the heat transfer.

Its advantages: pressure proof, quake proof, Deformation proof, dirty proof,oil returning smoothly, safe and high-quality,leak proof, convenient,reasonable price,well applied into heat pump system.

Product Features :

• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.

• According to different application scenarios,different heat exchange tubes can be selected.

Product material and structure :

Tube material and structure can be customizable.

Optional tube material	pure copper tube	stainless steel tube	titanium tube	nickel-copper tube

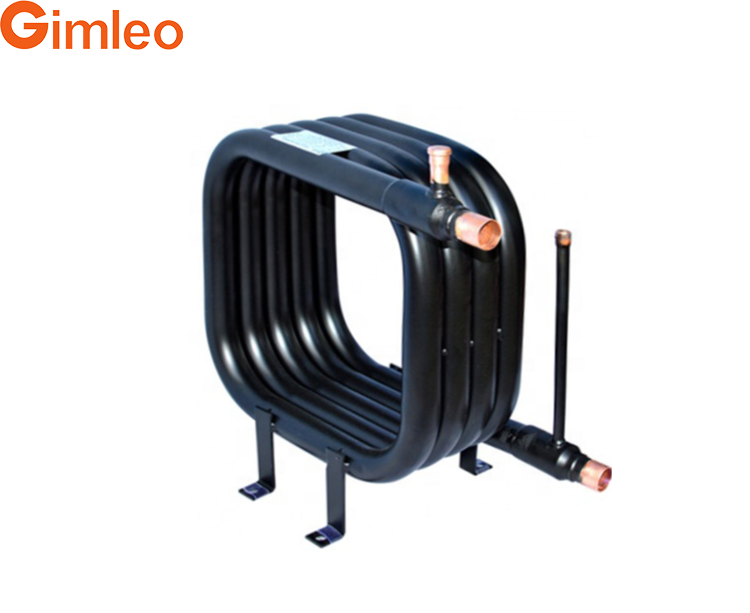

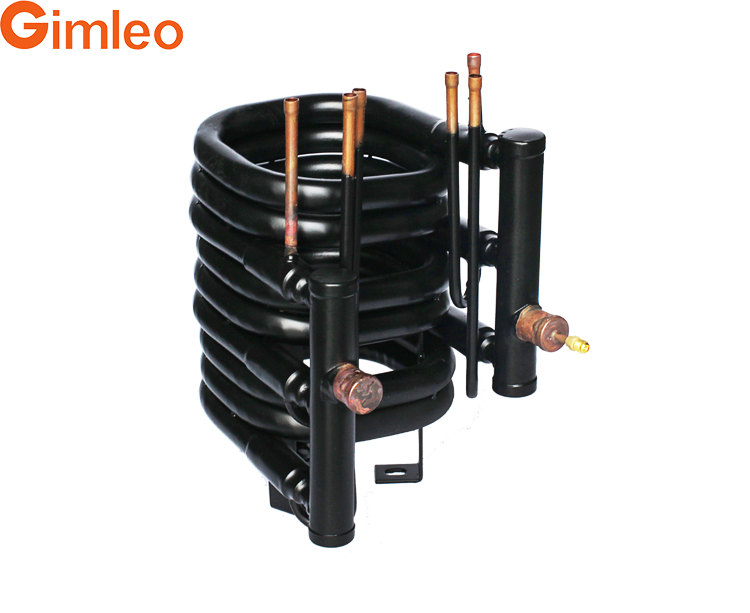

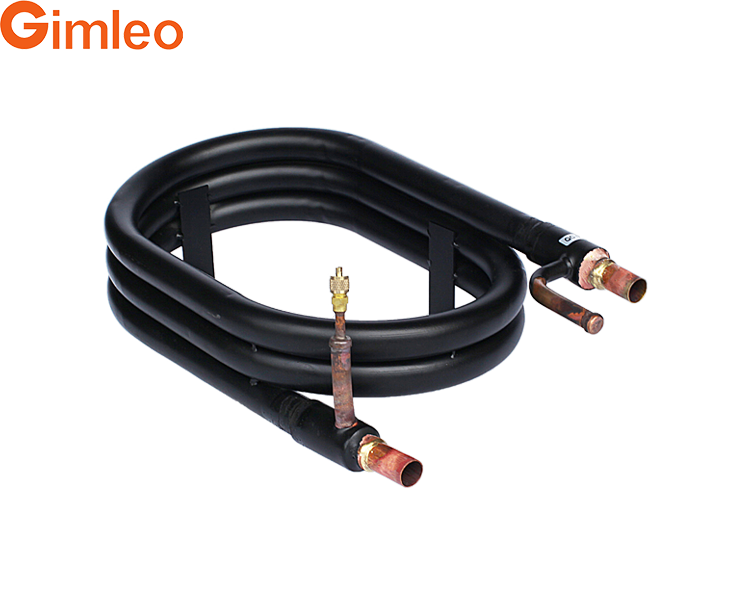

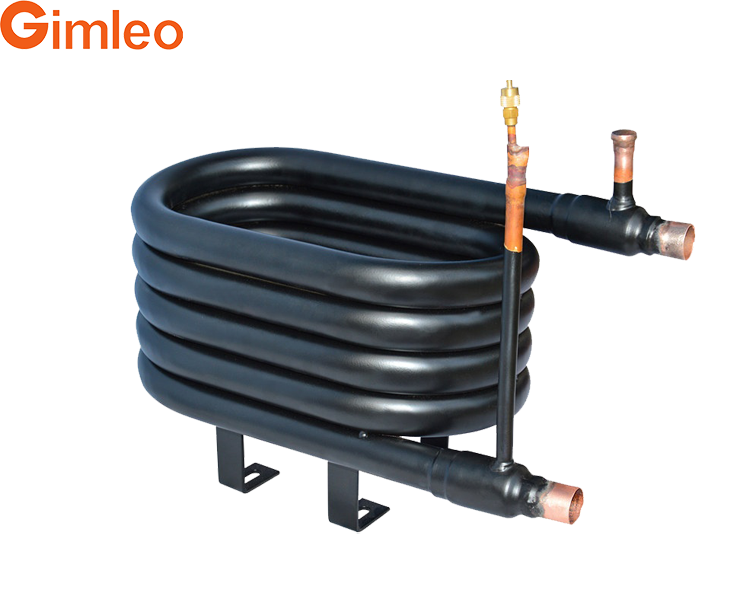

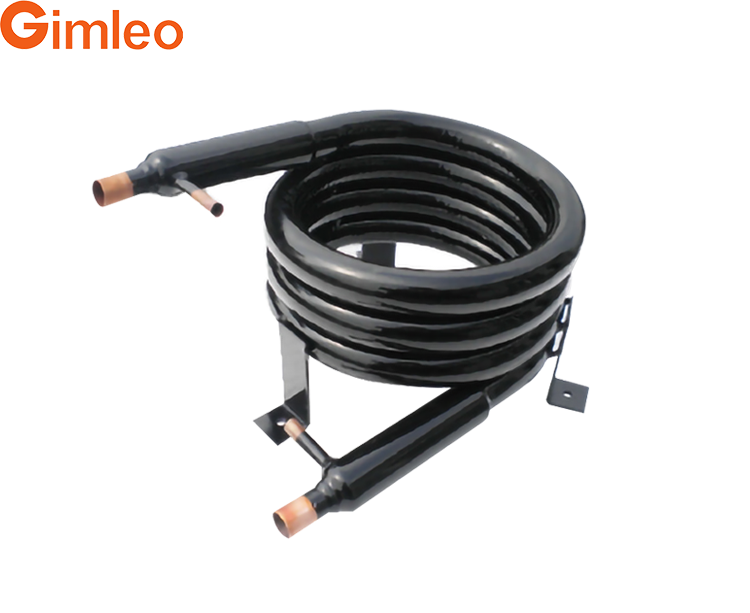

Optional tube structure	Round coaxial	Trombone coaxial	Rectangle coaxial
