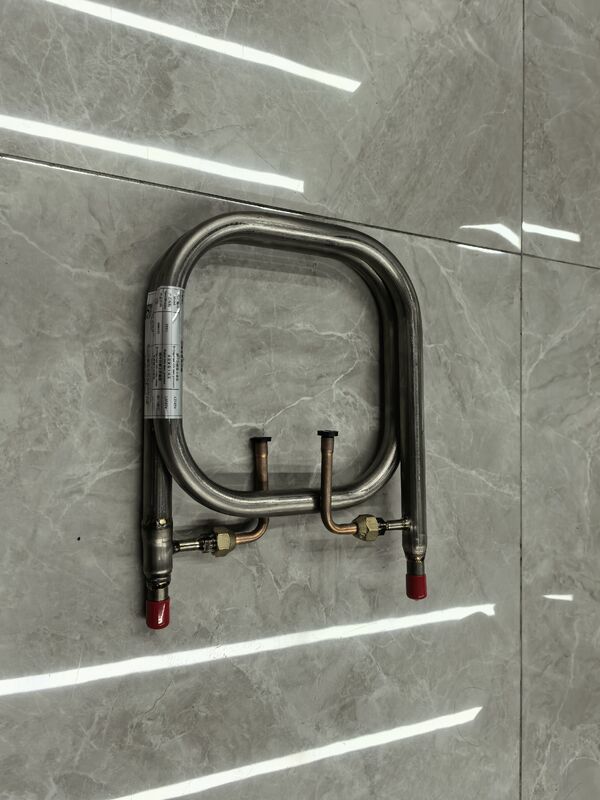

Insulation Customized Tube In Tube Heat Exchanger Designed for Pool Heat Pump Systems and Durable Heat Transfer Equipment

Product Description:

The Tube In Tube Heat Exchanger is a highly efficient and versatile piece of equipment designed to meet the demanding requirements of various industrial applications. This heat exchanger features an innovative design where one tube is placed inside another, allowing for optimal heat transfer between two fluid streams. Among the different types of heat exchangers available on the market, the Tube In Tube Heat Exchanger stands out for its compact structure, durability, and superior thermal performance.

One of the key components of this product is the outer tube, which boasts a thickness of 1.0mm. This thickness ensures robust mechanical strength and excellent resistance to pressure, making the heat exchanger reliable and long-lasting even under harsh operating conditions. The sturdy outer tube also contributes to enhanced safety during operation, especially when dealing with high-pressure fluids.

The Tube In Tube Heat Exchanger is widely used in applications such as Marine Air Conditioning (A/C), Pool Heat Pumps, and various Chemical Heat Exchange processes. In marine A/C systems, this heat exchanger efficiently transfers heat between seawater and the refrigerant, ensuring optimal cooling performance even in challenging marine environments. In pool heat pumps, it plays a crucial role in maintaining comfortable water temperatures by effectively transferring heat from the refrigerant to the pool water. Meanwhile, in chemical industries, this heat exchanger facilitates precise temperature control during chemical reactions, which is vital for product quality and safety.

Customization is a significant advantage of the Tube In Tube Heat Exchanger. Customers can specify the size of the heat exchanger according to their specific needs, allowing for seamless integration into existing systems or new installations. This flexibility ensures that the heat exchanger can accommodate a wide range of flow rates and thermal loads, making it suitable for both small-scale and large-scale operations.

In addition to size customization, the insulation of the Tube In Tube Heat Exchanger can also be tailored to meet particular application requirements. Proper insulation minimizes heat loss during transfer, improves energy efficiency, and protects the surrounding environment from extreme temperatures. Whether the application demands high-grade thermal insulation for low-temperature fluids or specialized insulation materials for chemical resistance, this heat exchanger can be adapted accordingly.

The refrigerant side of the Tube In Tube Heat Exchanger is designed to withstand a maximum pressure of 4.2MPa. This high-pressure tolerance ensures safe and reliable operation in refrigeration cycles, including those involving high-pressure refrigerants commonly used in marine A/C systems and heat pumps. The ability to handle such pressures without compromising performance or safety is a testament to the quality and engineering excellence behind this product.

This product is often referred to using terms such as Heat Exchanger U Tube, Heat Exchanger Condenser, and Coil Tube Heat Exchanger, depending on its configuration and application. The U tube design is particularly effective in facilitating thermal expansion and contraction, reducing mechanical stress, and enhancing the durability of the heat exchanger. As a condenser, it efficiently condenses refrigerants from vapor to liquid, making it integral to refrigeration and air conditioning systems. Meanwhile, the coil tube heat exchanger configuration maximizes surface area for heat transfer within a compact footprint, ideal for space-constrained installations.

In summary, the Tube In Tube Heat Exchanger is a robust, customizable, and efficient heat transfer solution suitable for a variety of applications including marine A/C, pool heat pumps, and chemical heat exchange. Its 1.0mm thick outer tube provides durability and safety under pressure, while its customizable size and insulation options ensure it meets specific operational demands. With a refrigerant side maximum pressure rating of 4.2MPa, this heat exchanger is designed to perform reliably in demanding environments. Whether referred to as a Heat Exchanger U Tube, Heat Exchanger Condenser, or Coil Tube Heat Exchanger, it remains a critical component for effective thermal management in modern industrial systems.

Features:

• Product Name: Tube In Tube Heat Exchanger
• Free Sample: Possible After Long Term Projects
• Water Side Maximum Pressure: 1.0MPA
• Water Side Temperature Range: -30°C To 90°C
• Outer Tube Thickness: 1.0mm
• Insulation: Customized
• Suitable for use as an Air Dryer Heat Exchanger
• Designed with Heat Exchanger U Tube configuration for efficient heat transfer
• Reliable performance as a Heat Exchanger U Tube type

Technical Parameters:

Applications:

The GIMLEO Tube In Tube Heat Exchanger, model number 12000BTU, is an advanced solution designed for a wide range of industrial and commercial applications where efficient heat transfer is critical. Manufactured in China and certified with ROHS, REACH, CE, PED, and ISO9001, this product ensures high quality and reliability. With a water side temperature range of -30°C to 90°C and a refrigerant side temperature range of -50°C to 150°C, it is perfectly suited for demanding environments requiring precise thermal management.

This Tube In Tube Coaxial Heat Exchanger is ideal for use in HVAC systems, specifically in Air Heat Exchanger applications where the transfer of heat between air and liquid mediums is necessary. Its unique design, featuring a titanium TA1 inner tube, guarantees excellent corrosion resistance and durability, making it highly effective in both residential and industrial air conditioning and refrigeration systems. It excels in scenarios requiring Heat Exchanger Insulation to maintain thermal efficiency and prevent energy loss.

In manufacturing plants, power generation facilities, and chemical processing industries, the GIMLEO 12000BTU model facilitates efficient heat recovery and cooling processes. It is widely used in systems that demand robust performance under varying temperature conditions, such as waste heat recovery units, water chillers, and condensers. The ability to customize the heat exchanger allows it to be tailored to specific project requirements, ensuring optimal integration into complex thermal systems.

For procurement, the minimum order quantity is 20 units, with prices ranging from 60 USD to 416 USD depending on customization and specifications. Each unit is carefully packaged in a plywood case to ensure safe delivery within approximately 21 days. The payment terms require T/T with 100% payment before delivery, supporting a streamlined transaction process. With a supply capacity of 15,000 pieces per month, GIMLEO can accommodate large scale projects efficiently.

Whether used in Air Heat Exchanger setups for commercial buildings, refrigeration systems requiring Heat Exchanger Insulation, or specialized industrial applications, the GIMLEO Tube In Tube Heat Exchanger offers superior performance, longevity, and adaptability. Its installation flexibility and robust certification credentials make it a trusted choice for engineers and facility managers seeking reliable thermal management solutions.

Customization:

GIMLEO offers customizable Tube In Tube Heat Exchangers, model number 12000BTU, designed to meet your specific requirements. Manufactured in CHINA, our products are certified with ROHS, REACH, CE, PED, and ISO9001, ensuring top quality and compliance.

Our Tube In Tube Heat Exchanger features an outer tube thickness of 1.0mm and utilizes high-grade Titanium TA1 for the inner tube material, providing excellent durability and corrosion resistance. This makes it an ideal choice for applications such as Air Dryer Heat Exchangers and Coil Tube Heat Exchangers.

We support a minimum order quantity of 20 units, with prices ranging from 60USD to 416USD depending on customization and specifications. Each unit is carefully packaged in a durable plywood case to ensure safe delivery.

Our supply ability reaches up to 15,000 pieces per month, with a typical delivery time of 21 days. Payment terms are flexible, including T/T with 100% payment required before delivery. We offer various price terms such as EXW, FOB, FCA, DAP, and DDP to suit your logistics preferences.

Maintenance of the Tube In Tube Heat Exchanger is straightforward, recommended through circular cleaning with oxalic acid to maintain optimal performance. Additionally, all products come with a 1-year warranty for your peace of mind.

Whether you need an Air Dryer Heat Exchanger or a Coil Tube Heat Exchanger, GIMLEO's Tube In Tube Heat Exchanger provides reliable, customizable solutions to fit your industrial needs.

Support and Services:

Our Tube In Tube Heat Exchanger product comes with comprehensive technical support and services to ensure optimal performance and longevity. We provide detailed installation guides, operation manuals, and maintenance instructions to help you get the most out of your equipment. Our experienced technical team is available to assist with troubleshooting, performance optimization, and answer any product-related inquiries. Additionally, we offer on-site inspection and maintenance services to maintain the efficiency and safety of your heat exchanger. Spare parts and replacement components are readily available to minimize downtime. We are committed to delivering reliable support throughout the lifecycle of your Tube In Tube Heat Exchanger.

Packing and Shipping:

Product Packaging:

The Tube In Tube Heat Exchanger is carefully packaged to ensure maximum protection during transit. Each unit is wrapped in protective foam and secured within a custom-fitted wooden crate or sturdy cardboard box, depending on the size and specifications of the product. All packaging materials are selected to prevent damage from moisture, impact, and vibration. Clear labeling with handling instructions and product details is applied to facilitate safe and efficient handling.

Shipping:

Shipping of the Tube In Tube Heat Exchanger is carried out using reliable freight carriers to guarantee timely and secure delivery. We offer multiple shipping options, including standard, expedited, and freight services, tailored to customer requirements. The product is shipped with appropriate documentation, including packing lists and certificates of compliance if required. Tracking information is provided to keep customers informed throughout the shipping process. Special arrangements can be made for international shipments, ensuring compliance with all relevant customs and import regulations.
