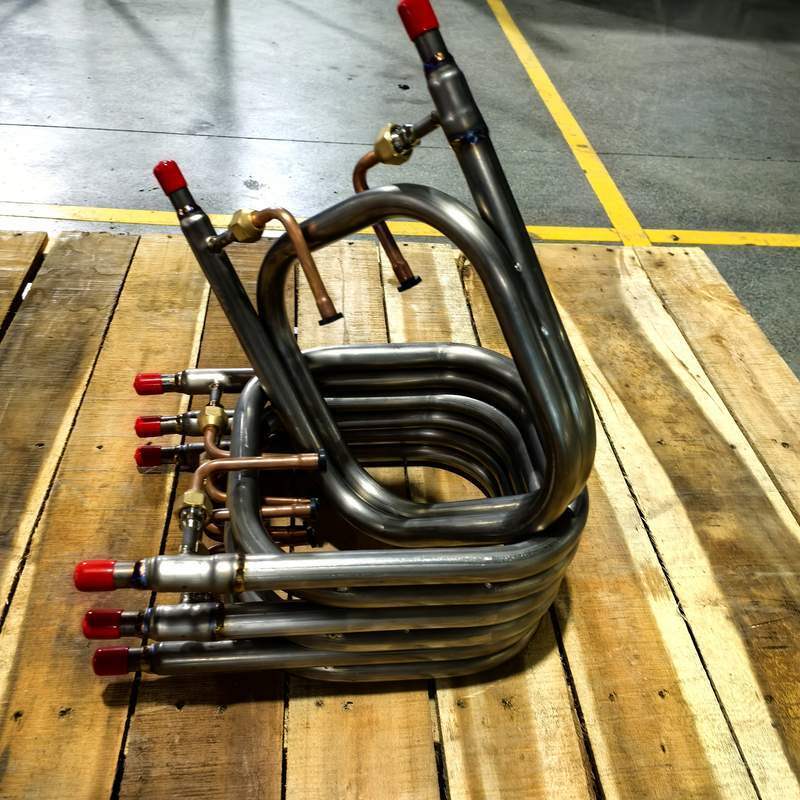

Name: Tube In Tube Heat Exchanger with 4.2MPA Refrigerant Side Max Pressure, Compatible with R32 Refrigerant and 1.0mm Outer Tube Thickness
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: 8000BTU
Price: 238.00 USD
Availability: InStock

Home > Products > Tube In Tube Heat Exchanger >

Tube In Tube Heat Exchanger with 4.2MPA Refrigerant Side Max Pressure, Compatible with R32 Refrigerant and 1.0mm Outer Tube Thickness

Brand Name:

GIMLEO

Certification:

ROHS, REACH, CE, PED, ISO9001

Model Number:

8000BTU

Request A Quote

Product Details

Outter Tube Thickness:

1.0mm

Water Side Max Pressure:

1.0MPA

Refrigerant Type:

R22,R134A,R407C,R410A,R290,R32, Etc.

Price Term:

EXW,FOB,FCA, DAP,DDP

Design:

Double Tube (Inner Tube And Outer Tube)

Refrigerant Side Max Pressure:

4.2MPA

Free Sample:

Possible After Long Term Projects

Insulation:

Customized

Payment & Shipping Terms

Minimum Order Quantity

Price

60USD~416USD

Packaging Details

PLYWOOD CASE

Delivery Time

21 DAYS

Payment Terms

T/T,100% PAID BEFORE DELIVERY

Supply Ability

15000PCS PER MONTH

Tube In Tube Heat Exchanger with 4.2MPA Refrigerant Side Max Pressure, Compatible with R32 Refrigerant and 1.0mm Outer Tube Thickness

Get Best Price

Video

Titanium TA1 Inner Tube Material Coaxial Heat Exchanger with 1.0MPA Water Side Max Pressure for Durable Industrial Heat Transfer

Get Best Price

Video

Titanium TA1 Inner Tube Coaxial Heat Exchanger with Double Tube Structure for Industrial Applications

Get Best Price

Video

R134A Refrigerant Type Coil Tube Heat Exchanger for Vertical Or Horizontal Installation

Get Best Price

Contact Now

Product Description

Refrigerant Side Max Pressure 4.2MPA Heat Exchanger U Tube Compatible with R32 Refrigerant

Product Overview

The Tube In Tube Heat Exchanger is a highly efficient and reliable solution designed for demanding industrial and commercial applications. This innovative heat exchanger condenser provides optimal thermal performance by effectively transferring heat between two fluid streams through concentric tubes.

Compatible with a wide range of refrigerant types including R22, R134A, R407C, R410A, R290, R32, and many others. Features a durable 1.0mm outer tube thickness and backed by a comprehensive 1-year warranty.

Key Features

Product Name: Tube In Tube Heat Exchanger
Type: Heat Exchanger
Installation Type: Vertical or Horizontal
Water Side Maximum Pressure: 1.0MPA
Refrigerant Side Maximum Pressure: 4.2MPA
Warranty: 1 Year
Also known as Coil Tube Heat Exchanger and Coaxial Heat Exchanger
Suitable for use as a Cabinet Heat Exchanger

Technical Specifications

Type	Heat Exchanger
Design	Double Tube (Inner Tube And Outer Tube)
Water Side Max Pressure	1.0MPA
Refrigerant Side Max Pressure	4.2MPA
Outer Tube Thickness	1.0mm
Installation Type	Vertical Or Horizontal
Insulation	Customized
Warranty	1 Year
Refrigerant Type	R22, R134A, R407C, R410A, R290, R32, Etc.
Free Sample	Possible After Long Term Projects

Applications & Certifications

The GIMLEO Tube In Tube Heat Exchanger (model 8000BTU) is certified with ROHS, REACH, CE, PED, and ISO9001, ensuring top quality and international compliance. Constructed with stainless steel shell and copper coil tube for excellent durability and thermal conductivity.

Widely used as a Heat Exchanger U Tube in HVAC systems, refrigeration, and industrial processes requiring efficient temperature regulation. Particularly effective as an Air Dryer Heat Exchanger for compressed air systems in manufacturing plants and automotive industries.

Minimum order quantity: 20 units | Price range: $60 - $416 USD | Supply capacity: 15,000 pieces per month | Lead time: 21 days
