Name: 15kW Ground Source Heat Pump Heat Exchanger GY-0154C With 1 Inch Water Connection
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: 15kW
Price: 25.00 USD
Availability: InStock

Home > products > Tube In Tube Heat Exchanger >

15kW Ground Source Heat Pump Heat Exchanger GY-0154C With 1 Inch Water Connection

15kW Ground Source Heat Pump Heat Exchanger

Ground Source Heat Pump Heat Exchanger GY-0154C

RoHS Ground Source Heat Exchange

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Model Number:

15kW

Request A Quote

Product Details

Maximum Working Pressure:

5.0MPa

Weight:

15 KG

Working Temperature Range:

-50~150℃

Product Name:

Coaxial Heat Exchanger

Heat Capacity:

15.4 Kw

Water Flow:

2.6 M³/h

Structure:

Trombone Coaxial, Tube Heat Exchanger

Shell Material:

Stainless Steel Copper Tube

Used As:

Condenser,Evaporator

Water Connection:

1 Inch

Liquid Flow Rate:

2.6 M³/h

Port:

Rongqi,Shunde,LELIU Etc

Highlight:

15kW Ground Source Heat Pump Heat Exchanger

Ground Source Heat Pump Heat Exchanger GY-0154C

RoHS Ground Source Heat Exchange

Payment & Shipping Terms

Minimum Order Quantity

5pcs

Price

$240.00/sets 1-49 sets

Packaging Details

plywood case

Delivery Time

15 days

Payment Terms

T/T, L/C, D/A, D/P, MoneyGram, Western Union

Supply Ability

600 Pieces per day

Compact And Durable Tube In Tube Heat Exchanger For Industrial Cooling And Condensing At Different Pressures

Get Best Price

GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection

Get Best Price

Durable And Industrial Grade Tube In Tube Heat Exchanger For Heavy Duty Applications GY-0200C

Get Best Price

Video

9.2kw Coaxial Heat Exchanger For Heavy Duty Applications Tube In Tube Heat Exchanger With GY-0092C

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

15kW Ground Source Heat Pump Heat Exchanger GY-0154C With And Water Connection 1 Inch

Products Description

Product name	Coaxial Heat Exchanger
Type	copper tube in steel tube
Model number	GY-0154C
Heating capacity	15.4kw
Water flow	2.6m³/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

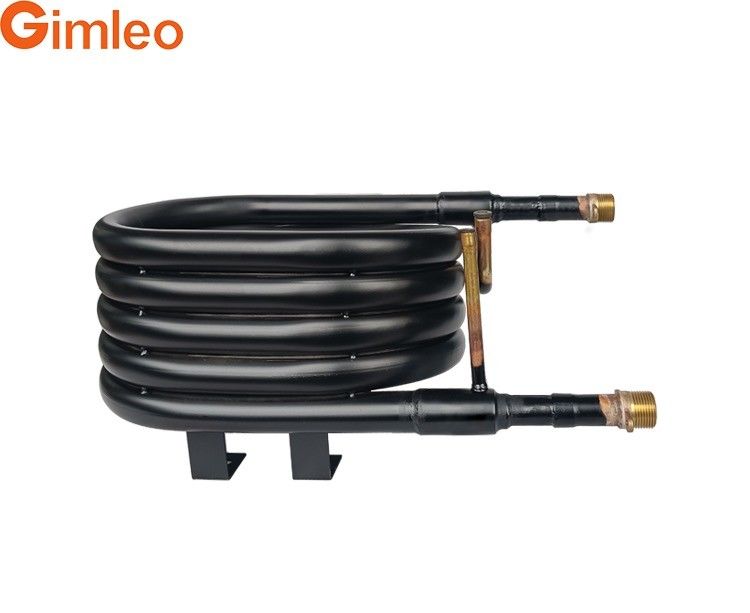

Coaxial heat exchanger is a recuperative heat exchanger. It consists of one inner twisted tube and one outer tube.Inner tube is separated the two media. Enable to heat exchange by using the common wall surface. Generally, the shell pass is for water, and the tube pass is for the air. It used a manner of countercurrent, which can be improved the effect of the heat transfer.

Its advantages: pressure proof, quake proof, Deformation proof, dirty proof,oil returning smoothly, safe and high-quality,leak proof, convenient,reasonable price,well applied into heat pump system.

Product Features :

• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.

• According to different application scenarios,different heat exchange tubes can be selected.

Product material and structure :

Tube material and structure can be customizable.

Optional tube material	pure copper tube	stainless steel tube	titanium tube	nickel-copper tube
Optional tube structure	Round coaxial	Trombone coaxial	Rectangle coaxial

Details Images

Product Application
