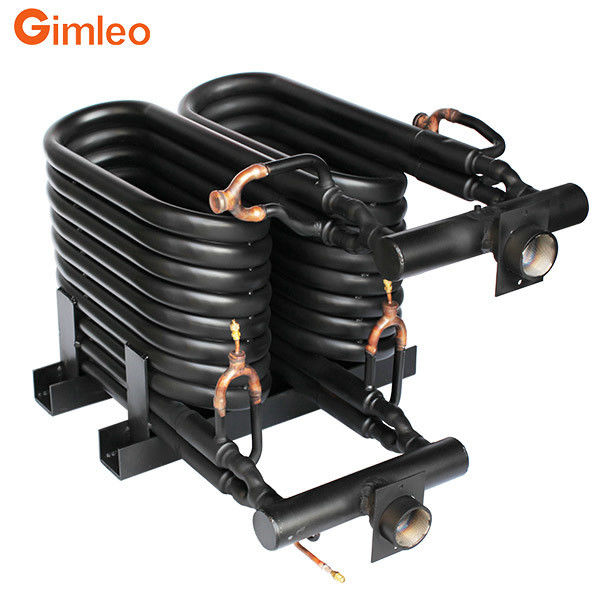

Name: 20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: 300000 BTU
Price: 120.00 USD
Availability: InStock

Home > products > Tube In Tube Heat Exchanger >

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube

Condenser Evaporator Heat Exchanger

BTU Condenser Evaporator

88KW Heat Exchanger Tube In Tube

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ce, RoHS, Reach

Model Number:

300000 BTU

Request A Quote

Product Details

Applicable Industries:

Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops

Liquid Flow Rate:

15.2 M3/h

Dimension(L*W*H):

Multiple Choices

Working Temperature Range:

-50~150℃

Product Name:

Coaxial Coil Heat Exchanger

Heating Capacity:

88KW 300000 BTU

Length Mm:

850

Height Mm:

520

Refrigerant Connector (mm):

Water Connector:

2" Female Threaded

Port:

Leliu Port

Highlight:

Condenser Evaporator Heat Exchanger

BTU Condenser Evaporator

88KW Heat Exchanger Tube In Tube

Payment & Shipping Terms

Minimum Order Quantity

5pcs

Price

negotiable

Packaging Details

plywood case

Delivery Time

15 days

Payment Terms

T/T, L/C, D/A, D/P, MoneyGram, Western Union

Supply Ability

600 Pieces per day

Compact And Durable Tube In Tube Heat Exchanger For Industrial Cooling And Condensing At Different Pressures

Get Best Price

GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection

Get Best Price

Durable And Industrial Grade Tube In Tube Heat Exchanger For Heavy Duty Applications GY-0200C

Get Best Price

Video

9.2kw Coaxial Heat Exchanger For Heavy Duty Applications Tube In Tube Heat Exchanger With GY-0092C

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

20HP 88KW 300000 BTU CONDENSER EVAPORATOR TUBE IN TUBE HEAT EXCHANGER COAXIAL HEAT EXCHANGER FOR HVACR

Product Description

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube 0

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube 1

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube 2

Features:

-Patented, Revolutionary Technology

-Innovative Design

-It is widely applied to air/water source heat pump,water cooler compressor unit etc.

-Structural optimization technology makes fluid flow more efficient and higher heat exchanging performance

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube 3

Specifications:

Model	Heating capacity (KW)	Water flow (M³/h)	Water connection inch	Refrigerant inlet (mm)	Refrigerant outlet (mm)	Length (mm)	Width (mm)	Height (mm)
GY-0040C	4	0.7	3/4"	12.7	9.52	313	140	140
GY-0060C	6	1.0	3/4"	12.7	9.52	325	140	170
GY-0092C	9.2	1.6	3/4"	12.7	9.52	313	140	200
GY-0135C	13.5	2.3	1"	16	9.52	313	140	257
GY-0154C	15.4	2.6	1"	16	12.7	555	245	222
GY-0200C	20	3.4	1"	19	12.7	664	245	222
GY-0228C	22.8	3.9	1"	19	12.7	660	280	262
GY-0400C	40	6.9	1.2"	19	16	690	245	444
GY-0440C	44	7.6	1.2"	19	16	700	280	524

If you're interested in our products,click here and send inquiry to us.

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube 4

What is TUBE-IN-TUBE HEAT EXCHANGER?

Tube-in-tube heat exchangers or coaxial heat exchangers consist of two tubes, an inner and an outer coiled together. This unique, compact design prevents thermal fatigue, increases efficiency and reduces the overall size. It is ideal for high temperature, high pressure and low flow applications such as water chillers and in. Tube-in-Tube heat exchangers are specifically designed for uses in water cooled condensers, water chillers and in water source heat pumps. The design is being used by major OEM’s around the world and in the ever expanding wholesale replacement market. Simplicity of design and installation makes this product ideal in both markets. At Gimleo, we offer product development and custom designed tube-in-tube coils for your HVACR systems

Application

20HP 88KW 300000 BTU Condenser Evaporator Heat Exchanger Tube In Tube 11
