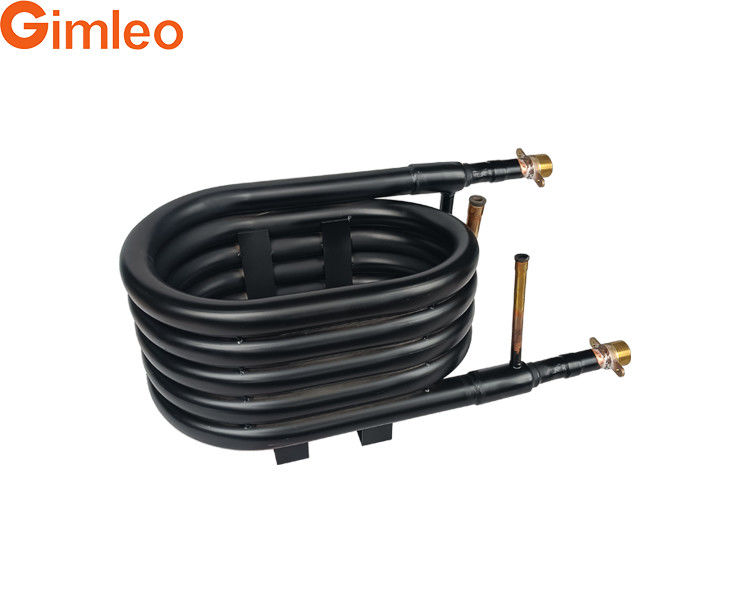

GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection

GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection

15kW Tube In Tube Heat Exchanger

Tube In Tube Heat Exchanger

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Model Number:

15kW

Contact Us
Request A Quote
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection
Product Details
Maximum Working Pressure:
5.0MPa
Weight:
15 KG
Working Temperature Range:
-50~150℃
Product Name:
Coaxial Heat Exchanger
Heat Capacity:
15.4 Kw
Water Flow:
2.6 M³/h
Structure:
Trombone Coaxial, Tube Heat Exchanger
Shell Material:
Stainless Steel Copper Tube
Used As:
Condenser,Evaporator
Water Connection:
1 Inch
Liquid Flow Rate:
2.6 M³/h
Port:
Rongqi,Shunde,LELIU Etc
Highlight:

15kW Tube In Tube Heat Exchanger

,

Tube In Tube Heat Exchanger

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
$240.00/sets 1-49 sets
Packaging Details
plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability
600 Pieces per day
RELATED PRODUCTS
Good price Compact And Durable Tube In Tube Heat Exchanger For Industrial Cooling And Condensing At Different Pressures online

Compact And Durable Tube In Tube Heat Exchanger For Industrial Cooling And Condensing At Different Pressures

Get Best Price
Good price GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection online

GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection

Get Best Price
Good price Durable And Industrial Grade Tube In Tube Heat Exchanger For Heavy Duty Applications GY-0200C online

Durable And Industrial Grade Tube In Tube Heat Exchanger For Heavy Duty Applications GY-0200C

Get Best Price
Good price 9.2kw Coaxial Heat Exchanger For Heavy Duty Applications Tube In Tube Heat Exchanger With GY-0092C online Video

9.2kw Coaxial Heat Exchanger For Heavy Duty Applications Tube In Tube Heat Exchanger With GY-0092C

Get Best Price
Contact Us
+8618929900710
sales06@gimleo.com
86-757-2837-8561
Contact Now
Product Description

GY-0154C Tube In Tube Heat Exchanger For Energy- 15kW Ground Source Heat Pump With Water Connection





Products Description
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 0
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 1
Product name
Coaxial Heat Exchanger
Type
copper tube in steel tube
Model number
GY-0154C
Heating capacity
15.4kw
Water flow
2.6m³/h
Use as
Condenser,Evaporator
Series Products
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 2
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 3
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 4

Product Introduction :

A coaxial heat exchanger is a recuperative heat exchanger consisting of an inner twisted tube and an outer tube. The inner tube separates the two media, allowing heat exchange through the shared wall surface. Typically, the shell pass carries water, while the tube pass carries air. It operates in countercurrent flow, enhancing heat transfer efficiency.

Advantages:

Pressure, quake, deformation, and dirt-resistant.

Smooth oil return, leak-proof, and safe.

Convenient, cost-effective, and ideal for heat pump systems.



Product Features :

• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.
• According to different application scenarios,different heat exchange tubes can be selected.


Product material and structure :

Tube material and structure can be customizable.
Optional tube material
pure copper tube
stainless steel tube
titanium tube
nickel-copper tube
Optional tube structure
Round coaxial
Trombone coaxial
Rectangle coaxial

Details Images
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 5
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 6
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 7
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 8
Product Application
GY-0154C Tube In Tube Heat Exchanger For Energy 15kW Ground Source Heat Pump With Water Connection 9
