Name: Water Evaporator Heat Exchanger Self Patented RAH02-CMF With Round Aluminium Tank
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: RAH02-CMF
Price: 33.00 USD
Availability: InStock

Home > products > Copper Tube Heat Exchanger >

Water Evaporator Heat Exchanger Self Patented RAH02-CMF With Round Aluminium Tank

Water Evaporator Heat Exchanger

Evaporator Heat Exchanger Self Patented

Evaporator Heat Exchanger RAH02-CMF

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Model Number:

RAH02-CMF

Request A Quote

Product Details

Applicable Industries:

Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops

Liquid Flow Rate:

0.86m3/h

Maximum Working Pressure:

4.5MPa

Weight:

5 KG

Warranty:

1 Year

Product Name:

Round Aluminium High Efficient Heat Exchanger

Heating Capacity:

5KW

Cooling Capacity:

3.5KW

Tube Material:

19.05mm Single Copper Tube

Shell Material:

120mm High Quality Steel

Application:

Condenser,Evaporator

Highlight:

Water Evaporator Heat Exchanger

Evaporator Heat Exchanger Self Patented

Evaporator Heat Exchanger RAH02-CMF

Payment & Shipping Terms

Minimum Order Quantity

10units

Price

$65.00/units 1-99 units

Packaging Details

pallet, crate,plywood cases

Delivery Time

15days

Payment Terms

T/T

Supply Ability

1500 Units per Month

Customizable Steel Tube In Shell Heat Exchanger Max Pressure 10-50 Bar Refrigerant Fluid

Get Best Price

Revolutionize Your Heat Transfer System With Copper Tube Heat Exchanger Ultimate Industrial Solution

Get Best Price

22mm Single Copper Tube Shell Heat Exchanger RAH08-CME For Condensortube Heat Exchanger Reasonable Price High Efficiency

Get Best Price

Durable HTS-2 Copper Tube Heat Exchanger for Spa and Restaurant Needs

Get Best Price

+8618929900710

sales06@gimleo.com

86-757-2837-8561

Contact Now

Product Description

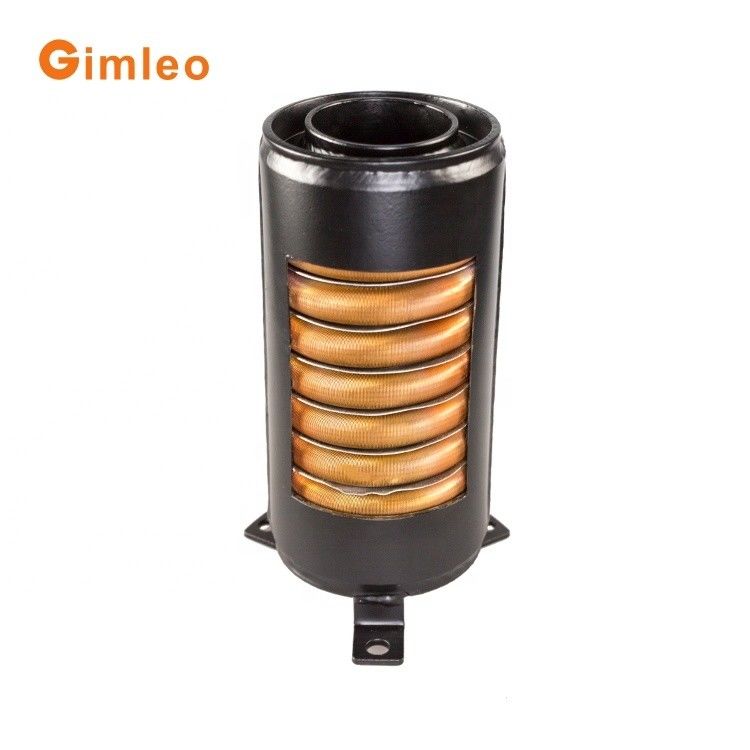

High Safety Level Water Evaporator Self-Patented RAH02-CMF with Round Aluminium Tank

Description:

Introducing the RAH02-CMF, Gimleo's state-of-the-art water evaporator that sets a new standard for safety and efficiency. Featuring our self-patented design, this evaporator is built to deliver exceptional performance in a variety of demanding applications.

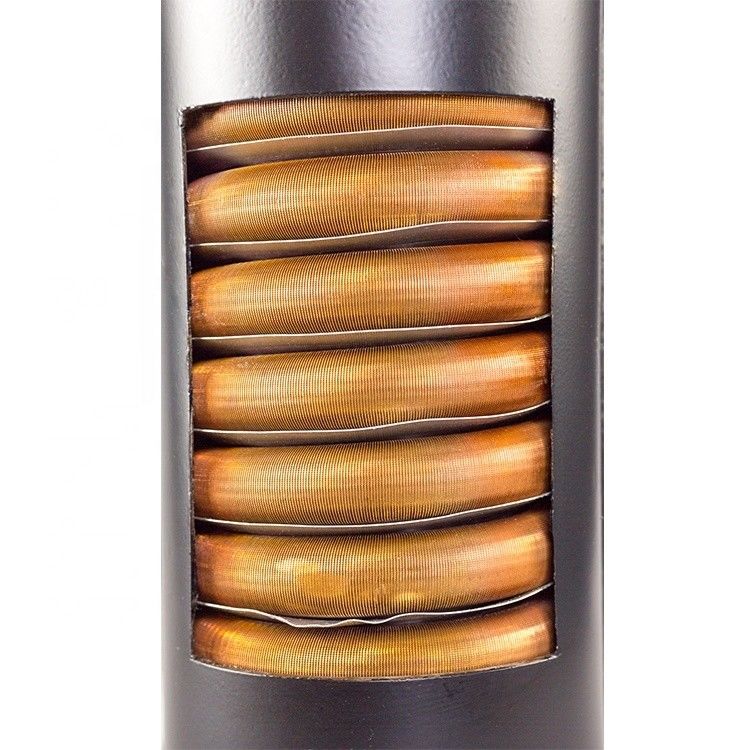

The RAH02-CMF is equipped with high-quality finned copper tubes, ensuring excellent heat transfer and efficient energy use. Our innovative flow-around structure enhances heating efficiency while reducing the length of copper pipes, resulting in lower operational costs. The round aluminum tank not only provides superior durability but also ensures uniform heat distribution for consistent performance.

Safety is paramount with the RAH02-CMF. Designed with advanced safety features, this evaporator is perfect for environments where reliability and safety are critical. The compact design makes it easy to install and maintain, making it an ideal choice for both industrial and commercial settings.

Quick Detail:

1. Round Aluminum Tank: Provides superior durability and uniform heat distribution.

2. High Safety Level: Advanced safety features ensure reliable operation in demanding environments.

3. Compact Volume: Space-saving design that simplifies installation and maintenance.

4. Flow-Around Structure: Enhances heating efficiency by reducing the length of copper pipes, lowering operational costs.

5. Durable Construction: Built with high-quality materials to ensure long-term performance and reliability.

Specification:

R Seriese Heat Exchanger

Model	Heating capacity1(KW)	Heating capacity2(KW)	Cooling capacity(KW)	Water flow(m3/h)	Height(mm)	Spacing of water connection (mm)	Refrigerant inlet(mm)	Refrigerant outlet(mm)
RAH02-CMF/ RBH02-CMF	5	3.5	3	0.86	221	186	12.7	9.52
RAH03-CMF/ RBH03-CMF	7	5	4	1.2	261	180	12.7	9.52
RAH04-CMF/ RBH04-CMF	10	7.5	6.5	1.72	331	250	15.88	9.52
RAH05-CMF/ RBH05-CMF	13	9.5	8.5	2.24	308	220	15.88	9.52
RAH06-CMF/ RBH06-CMF	16	12	11	2.75	353	265	15.88	9.52
RAH07-CMF/ RBH07-CMF	19	14	13	3.27	396	308	19.05	12.7
RAH08-CMF/ RBH08-CMF	22	16	14	3.78	440	352	19.05	12.7
RAK05-CMF/ RBK05-CMF	13	9.5	8.5	2.24	415	380	19.05	12.7
RAK06-CMF/ RBK06-CMF	16	12	10	2.75	463	382	19.05	12.7

Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃

Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
