Home > products > Copper Tube Heat Exchanger >
15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa

15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa

15KG Copper Tube Heat Exchanger

Copper Tube Heat Exchanger GAD01-CMF

Copper Tubing Heat Exchanger 3KW

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

RoHS

Model Number:

GAD01-CMF

Contact Us
Request A Quote
15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa 15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa
Product Details
Structure:
Tube Heat Exchanger, Coil In Shell
Liquid Flow Rate:
0.52m³/h
Maximum Working Pressure:
5.2MPa
Weight:
15 KG
Warranty:
1 Year
Working Temperature Range:
-50~150℃
Key Selling Points:
High Safety Level
Capacity:
3kw
Application:
Economizer,Condenser,Evaporator
Port:
Leliu Port
Highlight:

15KG Copper Tube Heat Exchanger

,

Copper Tube Heat Exchanger GAD01-CMF

,

Copper Tubing Heat Exchanger 3KW

Payment & Shipping Terms
Minimum Order Quantity
10units
Price
$74.00/units 10-49 units
Packaging Details
pallet, crate,plywood cases
Delivery Time
15days
Payment Terms
T/T
Supply Ability
1000 Unit/Units per Month
RELATED PRODUCTS
Good price Customizable Steel Tube In Shell Heat Exchanger Max Pressure 10-50 Bar Refrigerant Fluid online

Customizable Steel Tube In Shell Heat Exchanger Max Pressure 10-50 Bar Refrigerant Fluid

Get Best Price
Good price Revolutionize Your Heat Transfer System With Copper Tube Heat Exchanger Ultimate Industrial Solution online

Revolutionize Your Heat Transfer System With Copper Tube Heat Exchanger Ultimate Industrial Solution

Get Best Price
Good price 22mm Single Copper Tube Shell Heat Exchanger RAH08-CME For Condensortube Heat Exchanger Reasonable Price High Efficiency online

22mm Single Copper Tube Shell Heat Exchanger RAH08-CME For Condensortube Heat Exchanger Reasonable Price High Efficiency

Get Best Price
Good price Durable HTS-2 Copper Tube Heat Exchanger for Spa and Restaurant Needs online

Durable HTS-2 Copper Tube Heat Exchanger for Spa and Restaurant Needs

Get Best Price
Contact Us
+8618929900710
sales06@gimleo.com
86-757-2837-8561
Contact Now
Product Description
15 KG Tube Heat Exchanger with Maximum Working Pressure 5.2MPa GAD01-CMF

Description:


Introducing the GAD01-CMF, a robust and high-efficiency tube heat exchanger from Gimleo, designed to meet the demanding requirements of various industrial applications. With a maximum working pressure of 5.2MPa, this heat exchanger is engineered to deliver reliable and efficient thermal management, making it an ideal choice for high-pressure environments.



The GAD01-CMF features a durable design, capable of withstanding intense operating conditions. Its 15 KG construction ensures superior performance and longevity, providing consistent and reliable operation even in the most challenging settings. Built with high-quality materials, the GAD01-CMF guarantees optimal heat transfer and energy efficiency.



Designed for versatility, the GAD01-CMF is perfect for applications requiring robust thermal management solutions. Experience the exceptional quality and performance of Gimleo’s tube heat exchangers with the GAD01-CMF, tailored to deliver outstanding results.



Quick Detail:



1. Maximum Working Pressure 5.2MPa: Engineered to withstand high-pressure environments, providing reliable and efficient operation.



2. High-Quality Materials: Built with premium materials for consistent and reliable heat transfer.



3. Energy Efficient: Designed to maximize energy efficiency, reducing operational costs.



4. Versatile Applications: Ideal for a wide range of industrial thermal management systems.



5. Reliable Performance: Ensures consistent and dependable operation in demanding conditions.



6. Compact Design: Space-saving structure simplifies installation and maintenance.



Specification:



Multi-tube Heat Exchanger



Model

Heating

capacity1(KW)

Heating

capacity2(KW)

Cooling

capacity(KW)

 Water flow(m3/h) Height(mm) water connection (mm) Refrigerant inlet(mm) Refrigerant outlet(mm)

GAD01-CMF/

GBD01-CMF

 3 2 2 0.52 281 15.88*2 12.7 12.7

GAD1.5-CMF/

GBD1.5-CMF

 4.5 3 3 0.77 311 15.88*2 12.7 12.7

GAD03-CMF/

GBD03-CMF

 9 7.5 7.5 1.55 314 15.88*2 15.88 9.52

GAD04-CMF/

GBD04-CMF

 14 9.5 9.5 2.4 362 15.88*2 15.88 9.52

GAD05-CMF/

GBD05-CMF

 15.5 10.5 10.5 2.67 398 15.88*2 15.88 9.52

GAD06-CMF/

GBD06-CMF

 17 14 14.5 2.75 348 15.88*3 19.05 12.7

GAD07-CMF/

GBD07-CMF

 20 16.5 16.5 3.45 393 15.88*3 19.05 12.7

GAD08-CMF/

GBD08-CMF

 25 19 18.5 4.3 436 15.88*4 19.05 12.7

GAD10-CMF/

GBD10-CMF

 30 24 24 5.15 480 15.88*4 19.05 12.7

GAD12-CMF/

GBD12-CMF

 38 30 30 6.5 538 15.88*4 19.05 12.7



Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃



Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.

Products Detail:

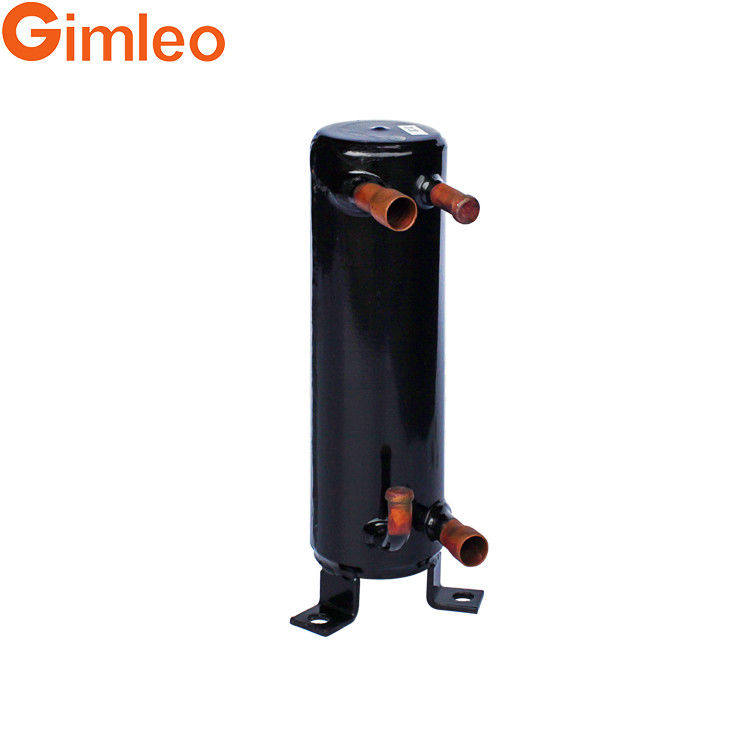

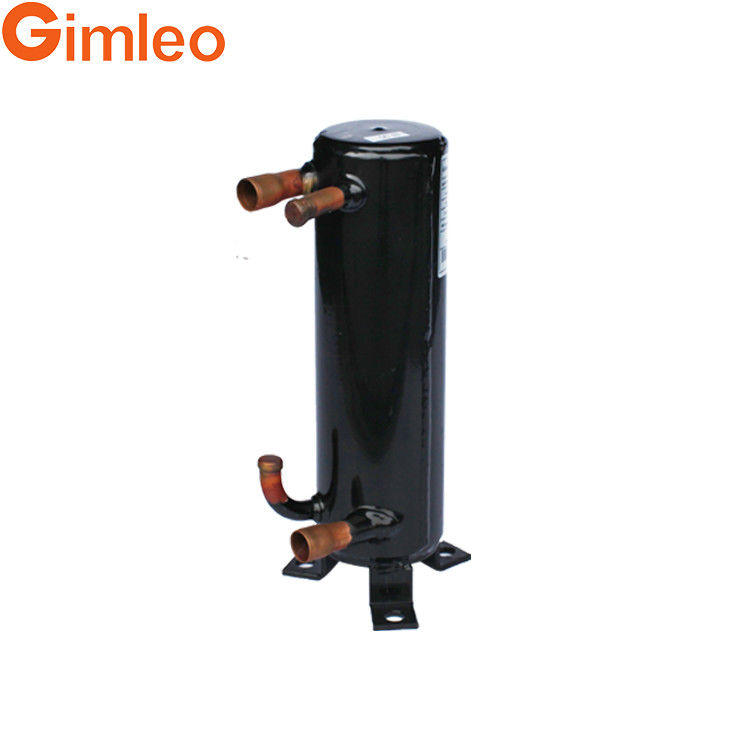

15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa 0
15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa 1
15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa 2

15KG Copper Tube Heat Exchanger GAD01-CMF 3KW Maximum Working Pressure 5.2MPa 3
