300,000 BTU Tube In Tube Heat Exchanger for HVACR Systems 20HP 88KW Condenser Evaporator Structural Optimization Technology Patented Design
Description:

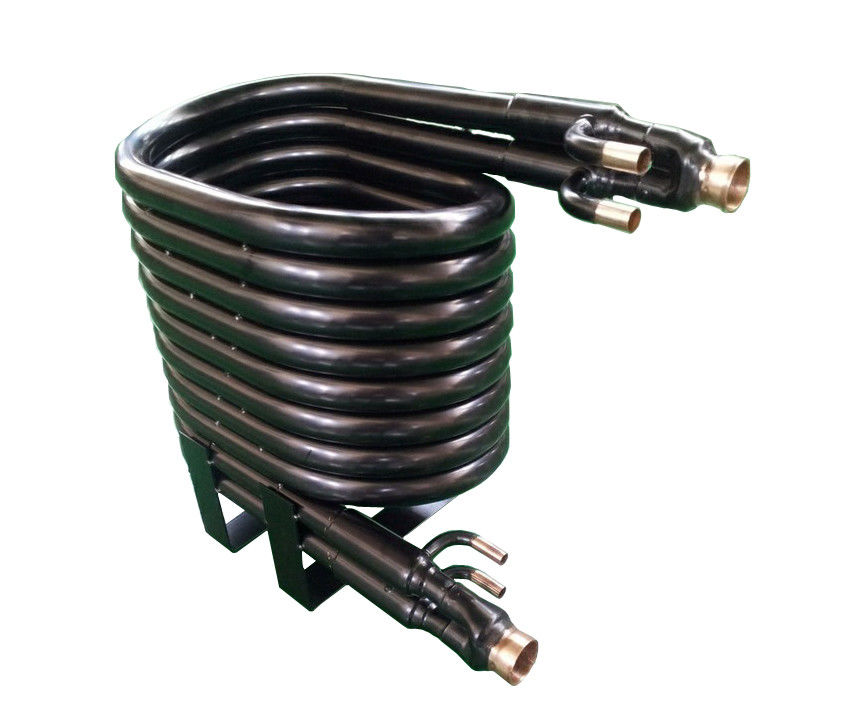

Discover the RAH08-CMF, a high-capacity, 300,000 BTU tube-in-tube heat exchanger, engineered to elevate HVACR system efficiency and reliability. Designed for powerful 20HP, 88kW heating and cooling performance, this condenser-evaporator hybrid is ideal for advanced thermal management across a variety of demanding environments.
The RAH08-CMF features a patented design incorporating structural optimization technology, boosting heat transfer efficiency and enhancing durability. With its innovative tube-in-tube configuration, this model minimizes thermal losses, ensuring optimal energy use and providing consistent thermal output for heating, ventilation, air conditioning, and refrigeration (HVACR) systems. Its compact construction allows for easy integration into existing setups, delivering unmatched versatility and reliability.
Quick Details:
- 300,000 BTU Capacity: High-powered thermal management for large-scale HVACR systems.
- 20HP, 88kW Performance: Ensures robust heating and cooling output.
- Structural Optimization Technology: Patented design maximizes heat transfer and durability.
- Tube-In-Tube Configuration: Minimizes energy loss and improves efficiency.
- Versatile Applications: Ideal for HVACR, commercial cooling, and industrial heating systems.
Features:
-Patented, Revolutionary Technology
-Innovative Design
-It is widely applied to air/water source heat pump,water cooler compressor unit etc.
-Structural optimization technology makes fluid flow more efficient and higher heat exchanging performance
Specifications:
| Model |
Heating capacity
(KW) |
Water flow
(M³/h) |
Water connection
inch |
Refrigerant inlet
(mm) |
Refrigerant outlet
(mm) |
Length
(mm) |
Width
(mm) |
Height
(mm) |
| GY-0040C |
4 |
0.7 |
3/4" |
12.7 |
9.52 |
313 |
140 |
140 |
| GY-0060C |
6 |
1.0 |
3/4" |
12.7 |
9.52 |
325 |
140 |
170 |
| GY-0092C |
9.2 |
1.6 |
3/4" |
12.7 |
9.52 |
313 |
140 |
200 |
| GY-0135C |
13.5 |
2.3 |
1" |
16 |
9.52 |
313 |
140 |
257 |
| GY-0154C |
15.4 |
2.6 |
1" |
16 |
12.7 |
555 |
245 |
222 |
| GY-0200C |
20 |
3.4 |
1" |
19 |
12.7 |
664 |
245 |
222 |
| GY-0228C |
22.8 |
3.9 |
1" |
19 |
12.7 |
660 |
280 |
262 |
| GY-0400C |
40 |
6.9 |
1.2" |
19 |
16 |
690 |
245 |
444 |
| GY-0440C |
44 |
7.6 |
1.2" |
19 |
16 |
700 |
280 |
524 |
If you're interested in our products,click here and send inquiry to us.
What is TUBE-IN-TUBE HEAT EXCHANGER?
Tube-in-tube heat exchangers or coaxial heat exchangers consist of two tubes, an inner and an outer coiled together. This unique, compact design prevents thermal fatigue, increases efficiency and reduces the overall size. It is ideal for high temperature, high pressure and low flow applications such as water chillers and in. Tube-in-Tube heat exchangers are specifically designed for uses in water cooled condensers, water chillers and in water source heat pumps. The design is being used by major OEM’s around the world and in the ever expanding wholesale replacement market. Simplicity of design and installation makes this product ideal in both markets. At Gimleo, we offer product development and custom designed tube-in-tube coils for your HVACR systems
