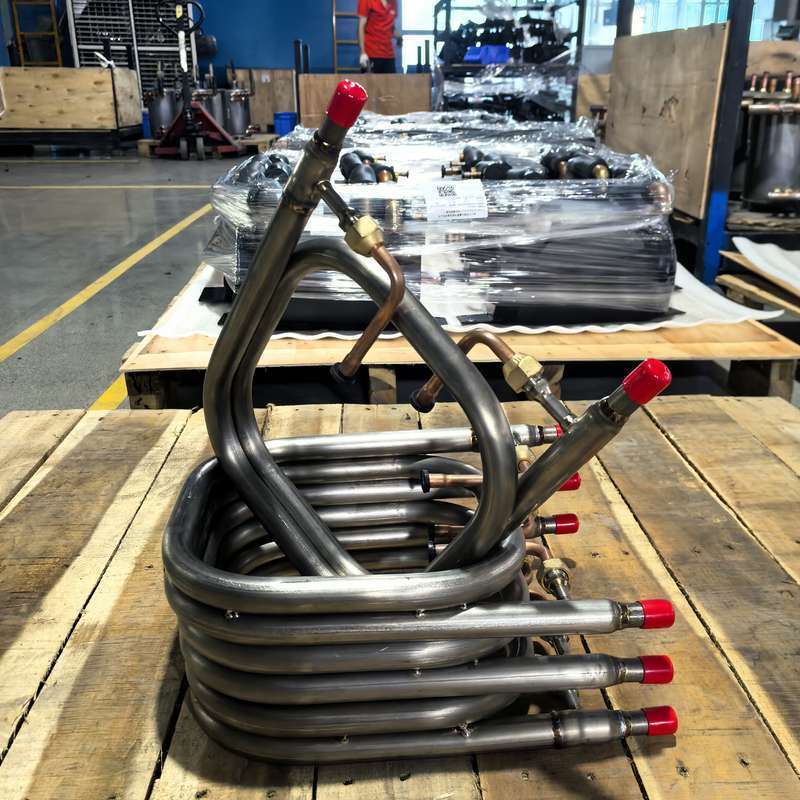

Name: Titanium TA1 Inner Tube Material Coaxial Heat Exchanger with 1.0MPA Water Side Max Pressure for Durable Industrial Heat Transfer
Brand: Gimleo Heat Exchanger Co., Ltd. (Foshan)
SKU: 6000BTU
Price: 238.00 USD
Availability: InStock

Home > Products > Tube In Tube Heat Exchanger >

Titanium TA1 Inner Tube Material Coaxial Heat Exchanger with 1.0MPA Water Side Max Pressure for Durable Industrial Heat Transfer

Place of Origin:

CHINA

Brand Name:

GIMLEO

Certification:

ROHS, REACH, CE, PED, ISO9001

Model Number:

6000BTU

Request A Quote

Product Details

Inner Tube Thickness:

0.6mm

Water Side Temp. Range:

-30°C To 90°C

Inner Tube Material:

Titanium TA1

Water Side Pressure:

1.0MPA

Payment & Shipping Terms

Minimum Order Quantity

Price

60USD~416USD

Packaging Details

PLYWOOD CASE

Delivery Time

21 DAYS

Payment Terms

T/T

Supply Ability

15000PCS PER MONTH

Tube In Tube Heat Exchanger with 4.2MPA Refrigerant Side Max Pressure, Compatible with R32 Refrigerant and 1.0mm Outer Tube Thickness

Get Best Price

Video

Titanium TA1 Inner Tube Material Coaxial Heat Exchanger with 1.0MPA Water Side Max Pressure for Durable Industrial Heat Transfer

Get Best Price

Video

Titanium TA1 Inner Tube Coaxial Heat Exchanger with Double Tube Structure for Industrial Applications

Get Best Price

Video

R134A Refrigerant Type Coil Tube Heat Exchanger for Vertical Or Horizontal Installation

Get Best Price

Contact Now

Product Description

Titanium TA1 Inner Tube Material Heat Exchanger U Tube Water Side Max Pressure 1.0MPA Durable Industrial Heat Transfer Equipment

Product Overview

The Tube In Tube Heat Exchanger is an advanced coaxial heat exchanger designed for demanding industrial and commercial applications. Featuring robust stainless steel construction and superior thermal performance, this unit provides effective heat transfer between two fluids while ensuring excellent durability and corrosion resistance.

Key Advantages

Broad refrigerant compatibility including R22, R134A, R407C, R410A, R290, R32
High water side pressure tolerance up to 1.0MPa
Suitable for use as both condenser and evaporator
Compatible with various heat exchanger insulation methods
1-year comprehensive warranty

Product Features

Product Name: Tube In Tube Heat Exchanger
Type: Ti Tube In Ti Tube Coaxial Heat Exchanger
Inner Tube Thickness: 0.6mm
Inner Tube Material: Titanium TA1
Compatible Refrigerant Types: R22, R134A, R407C, R410A, R290, R32, etc.
Warranty: 1 Year
Applications: Heat Exchanger Condenser, Cabinet Heat Exchanger

Technical Specifications

Parameter	Specification
Shell Material	Stainless Steel Tube
Refrigerant Type	R22, R134A, R407C, R410A, R290, R32, etc.
Used As	Condenser, Evaporator
Type	Ti Tube In Ti Tube Coaxial Heat Exchanger
Water Side Temp. Range	-30°C to 90°C
Warranty	1 Year
Installation Type	Tube In Tube Coaxial
Maintenance	Circular Cleaning With Oxalic Acid
Heat Transfer Area	10-1000 M²
Inner Tube Material	Titanium TA1

Applications

The 6000BTU Tube In Tube Heat Exchanger is designed for versatile applications across industrial and commercial settings. Its titanium construction provides excellent corrosion resistance, making it ideal for chemical processing plants, pharmaceutical industries, and saline environments.

Primary applications include:

Refrigeration units and air conditioning systems
Cold storage facilities and industrial chillers
Heat pump systems with extreme temperature variations
Chemical processing and pharmaceutical applications
Renewable energy systems including solar water heaters and geothermal heat pumps

The coaxial design ensures efficient heat transfer while maintaining system integrity and longevity across diverse operating conditions.
