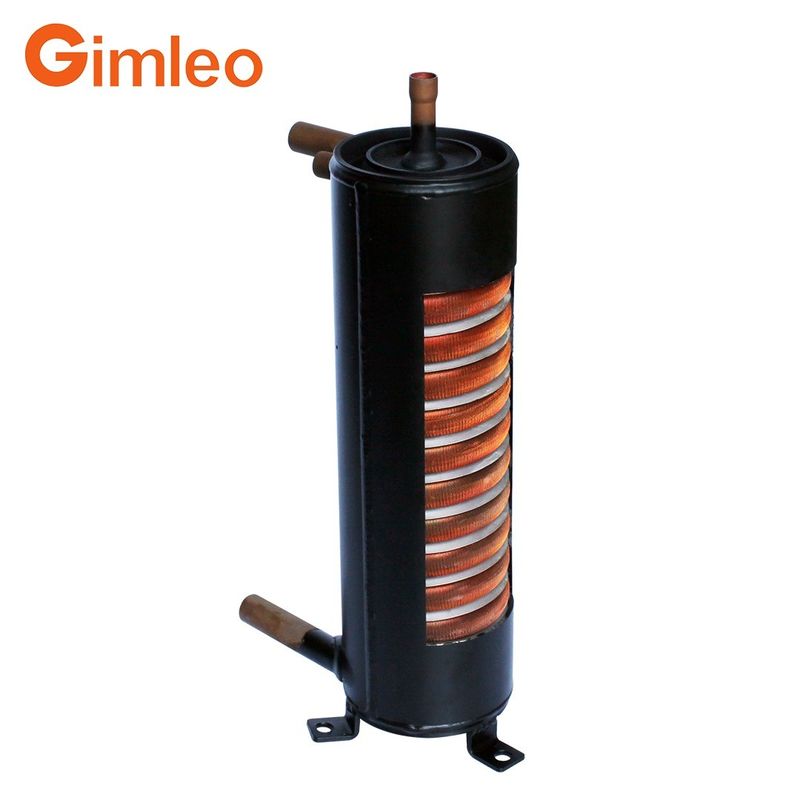

12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate

12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate

12KG High Temperature Heat Exchanger

High Temperature Heat Exchanger RAH03-CME

High Temp Heat Exchanger RAH03-CME

Place of Origin:

Guangdong, China

Brand Name:

Gimleo

Certification:

ISO9001,RoHS 2.0,REACH,CE and Patents

Model Number:

RAH03-CME

Contact Us
Request A Quote
12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate
Product Details
Warranty Of Core Components:
1 Year
Structure:
Tube Heat Exchanger
Liquid Flow Rate:
1.2M3/h
Maximum Working Pressure:
5.2Mpa
Weight:
12KG
Warranty:
1 Year
Working Temperature Range:
-50~150℃
Product Name:
Round Aluminium High Efficient Heat Exchanger
Heating Capacity:
7
Cooling Capacity:
5
Application:
Condenser,Evaporator
Highlight:

12KG High Temperature Heat Exchanger

,

High Temperature Heat Exchanger RAH03-CME

,

High Temp Heat Exchanger RAH03-CME

Payment & Shipping Terms
Minimum Order Quantity
10units
Price
$103.00/units 1-49 units
Packaging Details
Plywood Packing Crates and Boxes
Delivery Time
15days
Payment Terms
T/T
Supply Ability
1500 Piece/Pieces per Month
RELATED PRODUCTS
Good price Customizable Steel Tube In Shell Heat Exchanger Max Pressure 10-50 Bar Refrigerant Fluid online

Customizable Steel Tube In Shell Heat Exchanger Max Pressure 10-50 Bar Refrigerant Fluid

Get Best Price
Good price Revolutionize Your Heat Transfer System With Copper Tube Heat Exchanger Ultimate Industrial Solution online

Revolutionize Your Heat Transfer System With Copper Tube Heat Exchanger Ultimate Industrial Solution

Get Best Price
Good price 22mm Single Copper Tube Shell Heat Exchanger RAH08-CME For Condensortube Heat Exchanger Reasonable Price High Efficiency online

22mm Single Copper Tube Shell Heat Exchanger RAH08-CME For Condensortube Heat Exchanger Reasonable Price High Efficiency

Get Best Price
Good price Durable HTS-2 Copper Tube Heat Exchanger for Spa and Restaurant Needs online

Durable HTS-2 Copper Tube Heat Exchanger for Spa and Restaurant Needs

Get Best Price
Contact Us
+8618929900710
sales06@gimleo.com
86-757-2837-8561
Contact Now
Product Description
High Temperature Heat Pump with R134a Evaporator and 1.2M3/h Liquid Flow Rate RAH03-CME

Description:


Introducing the RAH03-CMF High-Efficiency Heat Exchanger, a premier product from our R Series Heat Exchanger line, designed for exceptional heating performance. This advanced heat exchanger is meticulously engineered to optimize energy transfer, ensuring reliable and efficient heating for various industrial and commercial applications.



The RAH03-CMF, part of our 2nd generation high-efficiency tube in shell heat exchanger series, features a compact and durable design that allows for easy installation and maintenance, significantly reducing downtime and operational costs. Constructed with high-quality materials, it guarantees longevity and resistance to corrosion. Its innovative heat transfer surfaces ensure optimal performance even in the most demanding environments.



Whether upgrading an existing system or implementing a new solution, the RAH03-CMF High-Efficiency Heat Exchanger offers unparalleled efficiency, reliability, and value. Experience the future of energy-efficient thermal management with Gimleo's R Series Heat Exchangers.



Quick Detail:



1. Extreme Heating Efficiency: The flow-around structure reduces the length of copper pipes, enhancing heating efficiency and reducing costs.

2. High-Quality Construction: Durable, corrosion-resistant materials ensure a long lifespan and reliable performance even in harsh conditions.

3. Compact and Easy to Install: The design allows for easy installation and maintenance, saving space and reducing operational costs.

4. Innovative Heat Transfer Surfaces: Engineered to maximize energy transfer for consistent heating performance.
Designed for Industrial and Commercial Applications: Suitable for a wide range of heating needs, from industrial systems to commercial setups.



Specification:



R Seriese Heat Exchanger



Model

Heating

capacity1(KW)

Heating

capacity2(KW)

Cooling

capacity(KW)

Water flow(m3/h)

Height(mm)

Spacing of water connection (mm)

Refrigerant inlet(mm)

Refrigerant outlet(mm)

RAH02-CMF/

RBH02-CMF

5

3.5

3

0.86

221

186

12.7

9.52

RAH03-CMF/

RBH03-CMF

7

5

4

1.2

261

180

12.7

9.52

RAH04-CMF/

RBH04-CMF

10

7.5

6.5

1.72

331

250

15.88

9.52

RAH05-CMF/

RBH05-CMF

13

9.5

8.5

2.24

308

220

15.88

9.52

RAH06-CMF/

RBH06-CMF

16

12

11

2.75

353

265

15.88

9.52

RAH07-CMF/

RBH07-CMF

19

14

13

3.27

396

308

19.05

12.7

RAH08-CMF/

RBH08-CMF

22

16

14

3.78

440

352

19.05

12.7

RAK05-CMF/

RBK05-CMF

13

9.5

8.5

2.24

415

380

19.05

12.7

RAK06-CMF/

RBK06-CMF

16

12

10

2.75

463

382

19.05

12.7



Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃



Company Introduction:

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.

Products Detail:

12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate 0
12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate 1
12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate 2



Product Application
12KG High Temperature Heat Exchanger RAH03-CME With 1.2M3/H Liquid Flow Rate 3
